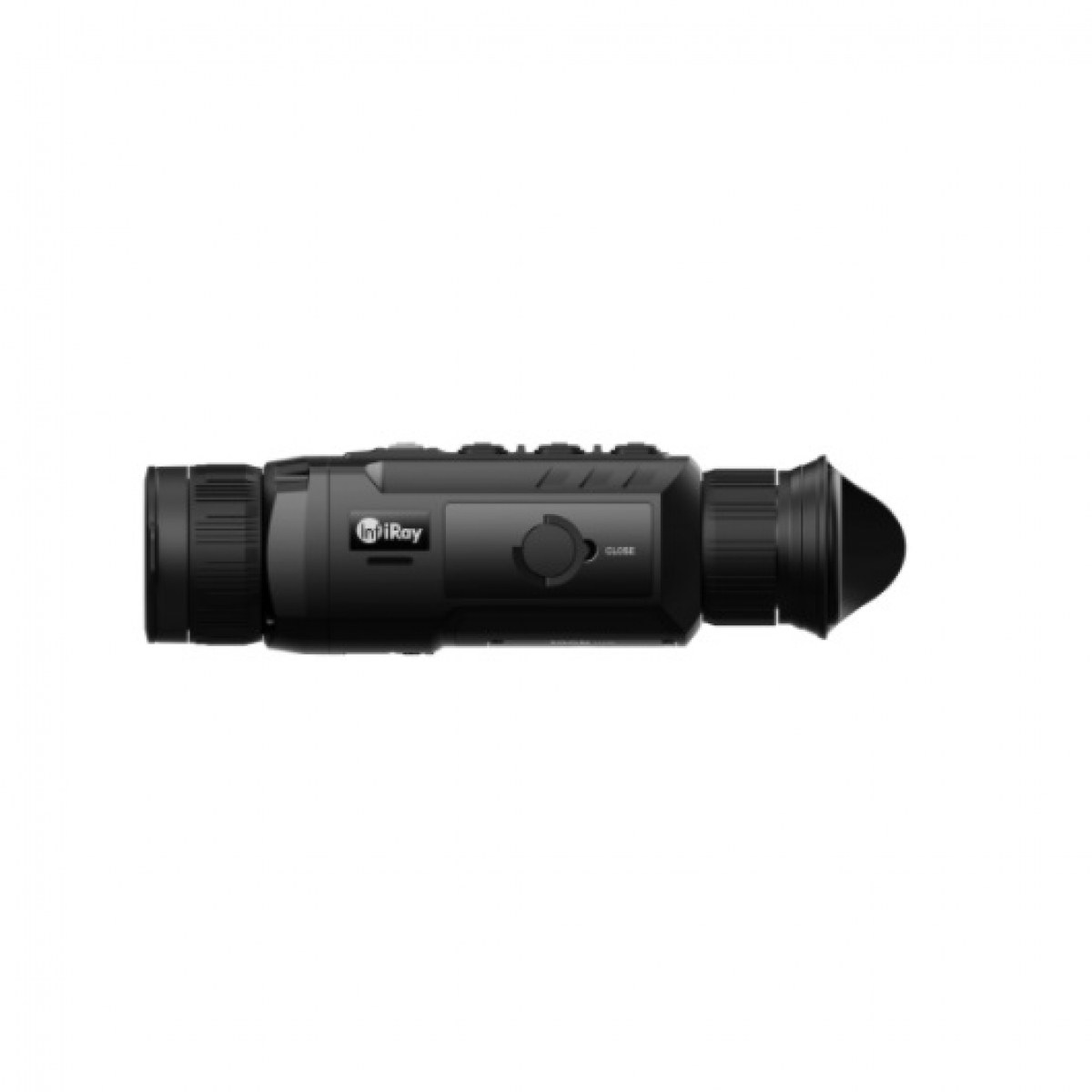

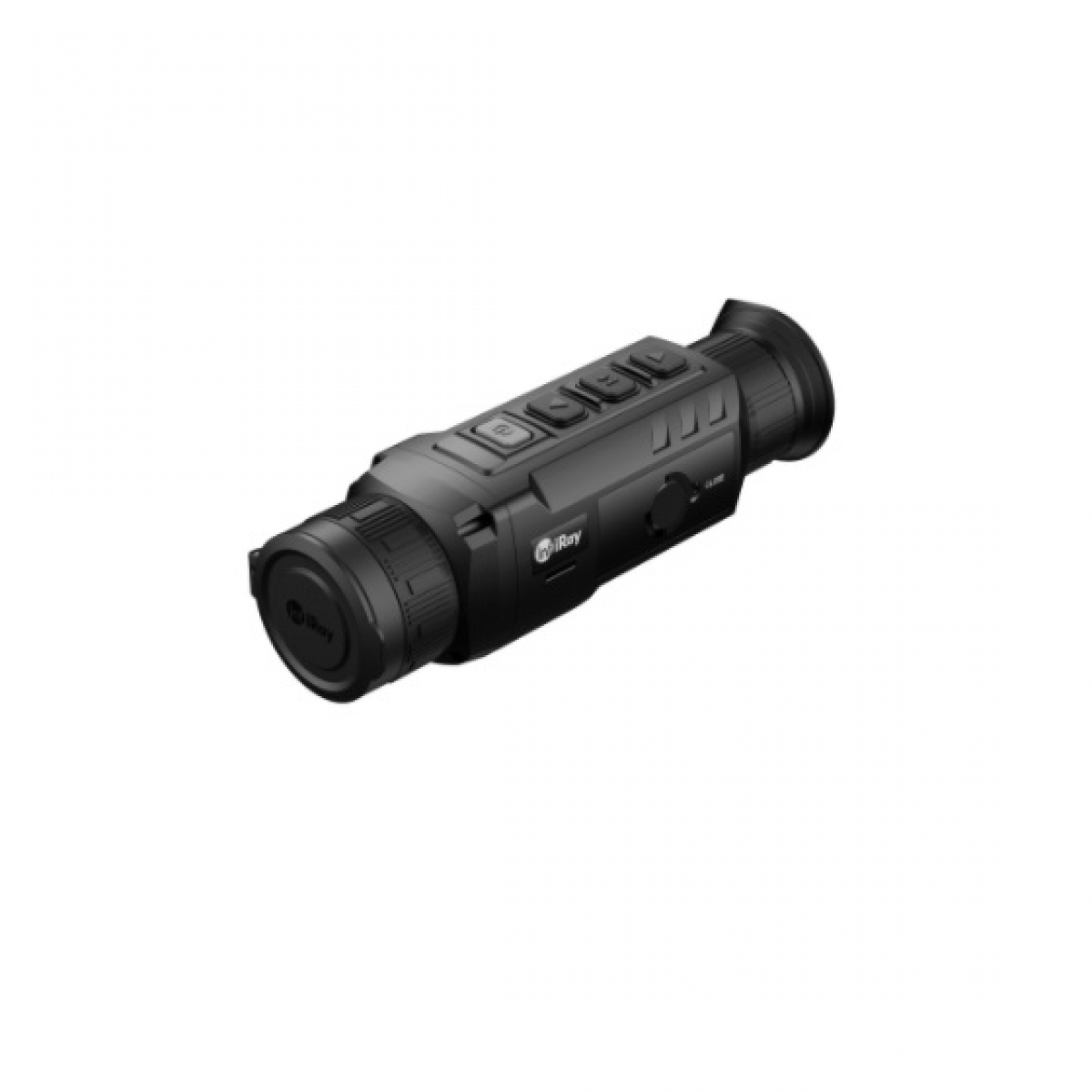

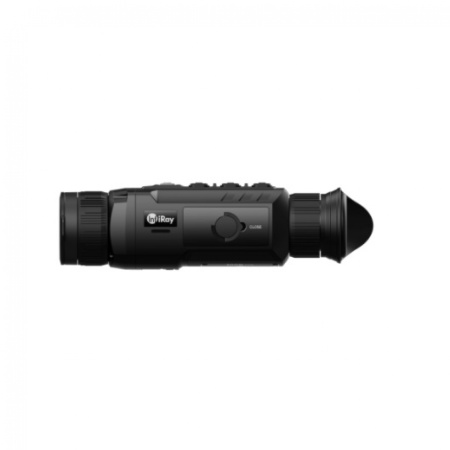

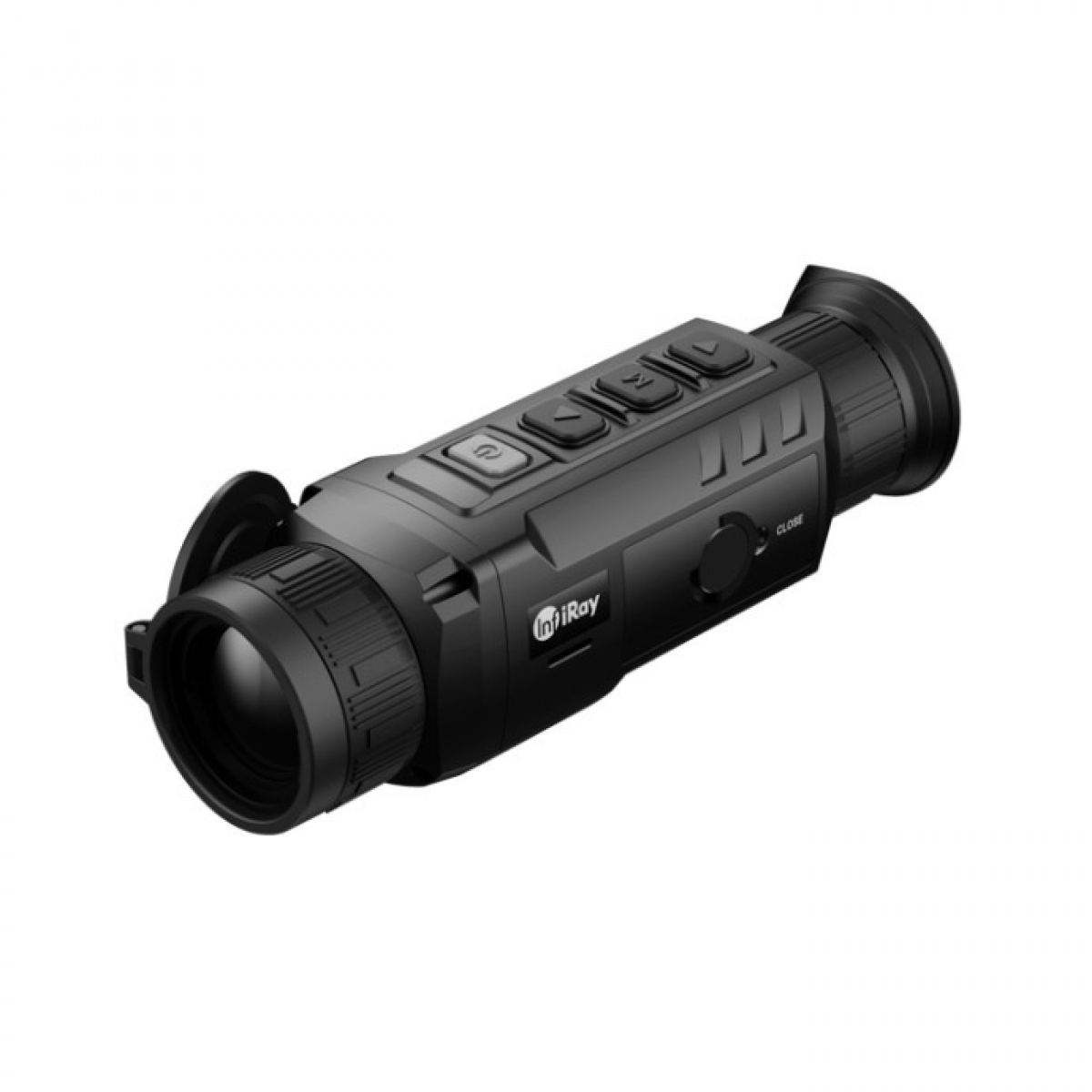

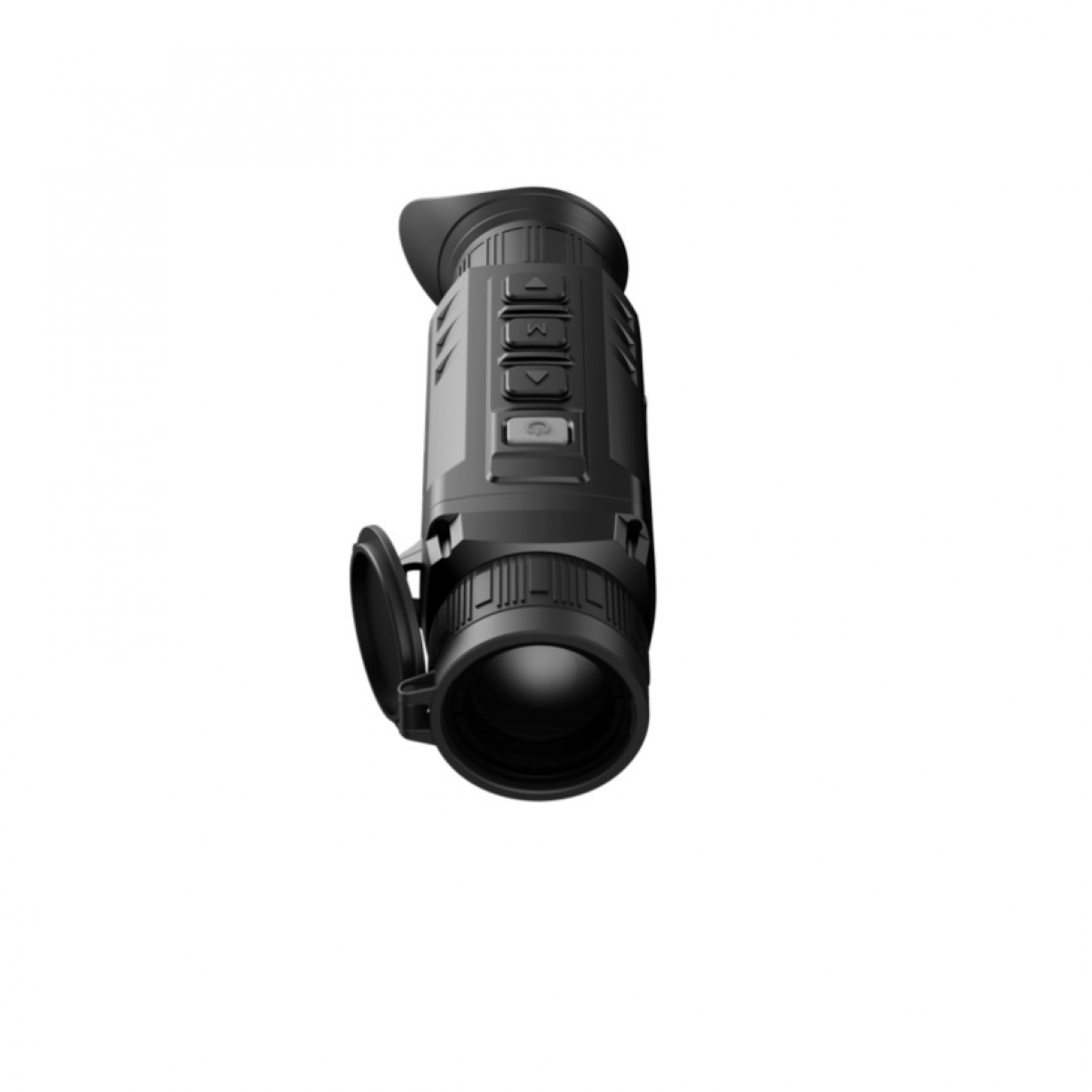

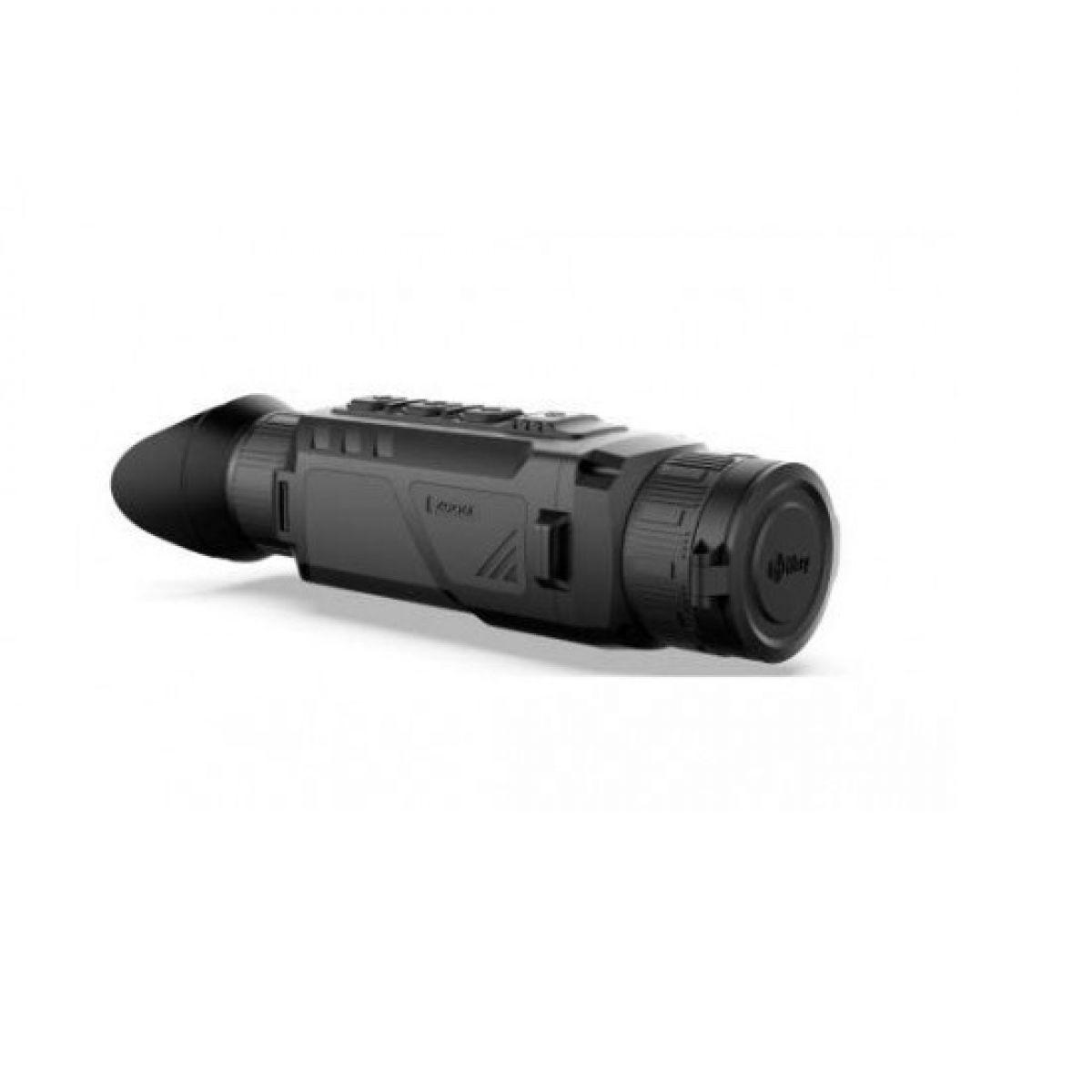

Infiray Zoom ZH38, 19/38 mm, 640×512, Thermal monocular

The ZH38 is a high-end thermal imaging monocular for outdoor. It has three “FIRSTS” in the industry, those are dual field of view (FOV), 1440×1080 high display resolution and shutterless technology. While maintaining the advantages of clear images, the ZH38 also has a variety of diversified color options, PIP, digital zoom, hot spot tracking, probability rangefinding and other functions. It could be extensively used for night hunting, observation and terrain positioning, search and rescue, etc.

The first breakthrough innovation is our “zoom as you wish” function. Using the unique dual FOV and 2× optical zoom, the user can quickly switch the dual FOV manually, a larger FOV with a focal length of 19mm is used for target search while a smaller FOV with a focal length of 38mm for target identification. Meet the need to see far, accurately and clearly.

The ZH38 has a built-in full-color high-definition display with a resolution of up to 1440×1080, coupled with the 20 times magnification eyepiece, and supports ×1/×2/×3/×4 electronic zoom for clearer and more comfortable observation, which greatly improves the human eye observation experience.

The Shutterless core module is adopted to nullify the shutter calibration, simplify the operation, and lower the energy consumption, making the imaging quieter and linear.

High Image Quality with NETD ≤25mK
The imaging effect of ZOOM series can withstand the test as always, ZH38 is equipped with uncooled Vox 12μm 640×512 high resolution sensor featuring NETD ≤25mk (25 °C, F#=1.0). And with ultra clear function, your adventures will never again be stopped by even the worst weather conditions. Better image quality is provided with the powerful sensor and image algorithms, which will bring you a different clear outdoor experience.

10 Hours×2 Batteries
The ZOOM series uses low-power components, lower power consumption, with a replaceable 4400mAh large-capacity lithium battery pack, battery life up to 10 hours, additional battery pack as standard, battery life up to 20 hours, to achieve long-term outdoor operation worry-free.

32GB Storage
ZH38 is built with memory of 32GB which can support to store video and pictures, while the built-in WiFi module supports APP applications.

PIP Function
Built-in Picture-in-Picture function of ZH38 improves accuracy by providing a 2x magnified image of the reticle area at the top of the display. It helps users to zoom in on the targets while retaining the rest of the field of view visible.

5 Color Palettes

For different hunting environments and personal habits, the ZOOM series still includes 5 color modes: white hot, black hot, red hot, color and hot target highlight. Especially in the hot target highlight, the hottest spot in the environment can be automatically and quickly captured in order to find the target.

Specifications:

Detector Resolution   -   640×512
Pixel Pitch, μm   -   12
NETD, mK   -   ≤ 25
Frame Rate, Hz   -   50
Objective Lens, mm   -   19/38
Magnification, ×   -   1.6 ~ 12.8
Digital Zoom   -   1×/2×/3×/4×
Eye Relief, mm   -   20
Exit Pupil Diameter, mm   -   5.5
Display Resolution   -   1440×1080 FHD OLED
Display Size, inch   -   0.4
Battery   -   Lithium-ion battery pack IBP-1/4400mAh/DC3.7V
Max. Battery Life, h   -   10 hours × 2 batteries
Amount of built-in memory, GB   -   32
Operating temperature, ℃   -   -20 ~ +50
Weight, g   -   580
Dimension, mm   -   190×65×60

3 years warranty in the European service center.
