2 295 €
Article:
TL35V2
In stock:Not available
By order
Our managers will contact you and clarify the terms of the order
The price is valid only for the online store and may differ from the prices in retail stores.
Need a consultation?
Our experts will answer to any question
Ask a question
Description

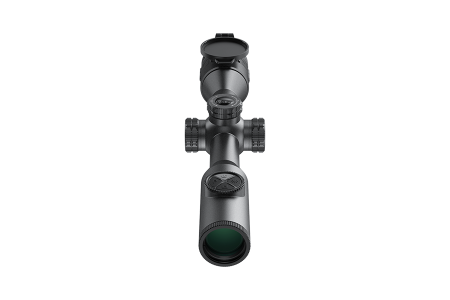

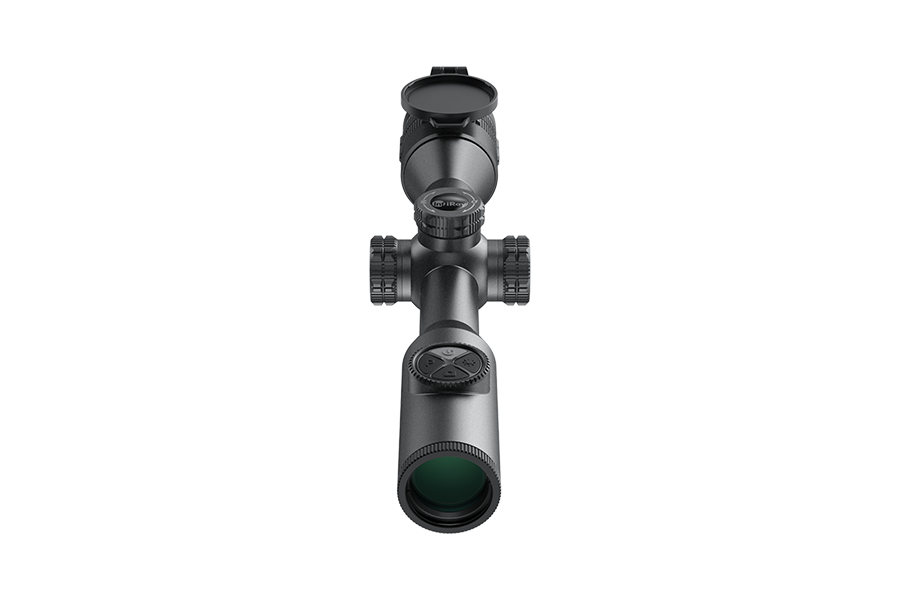

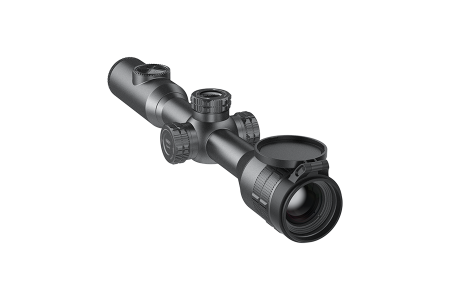

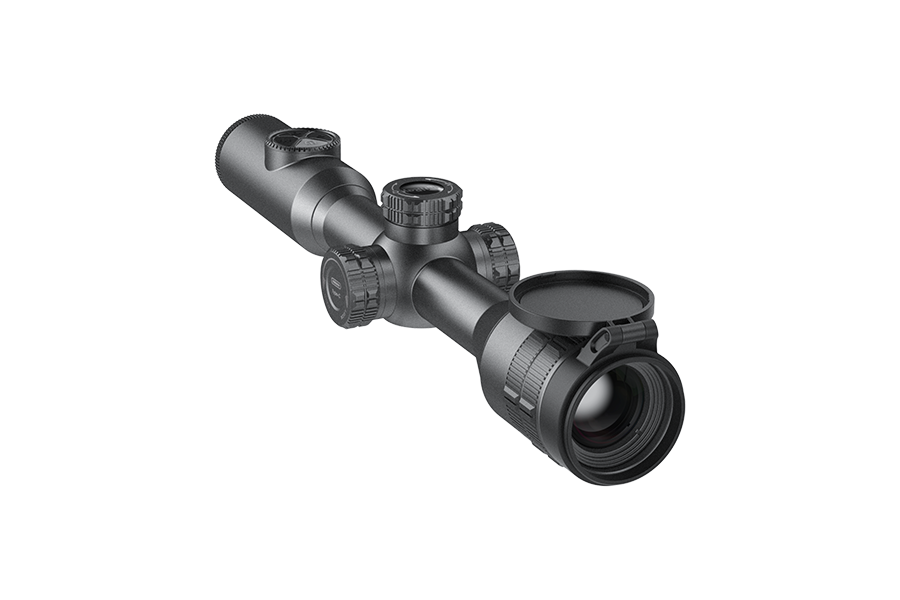

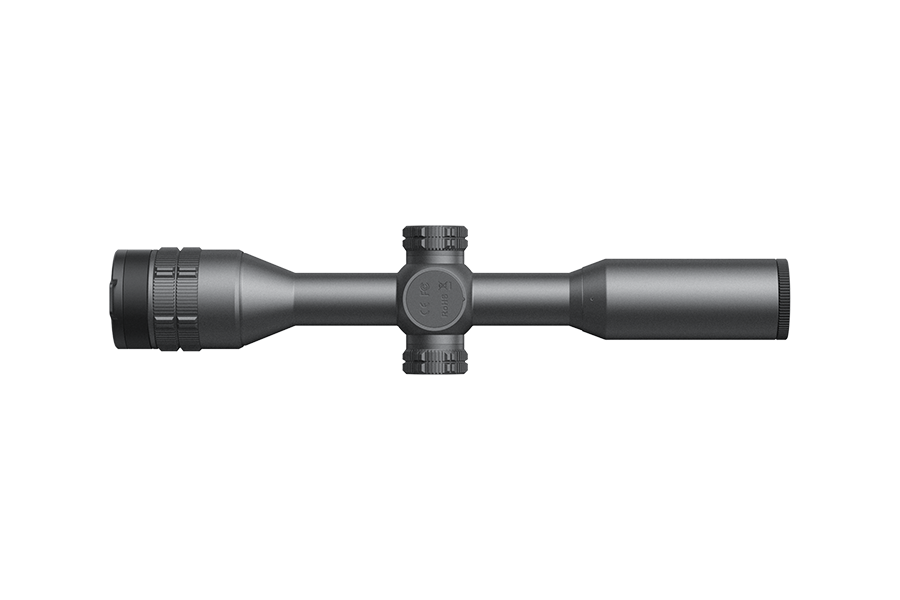

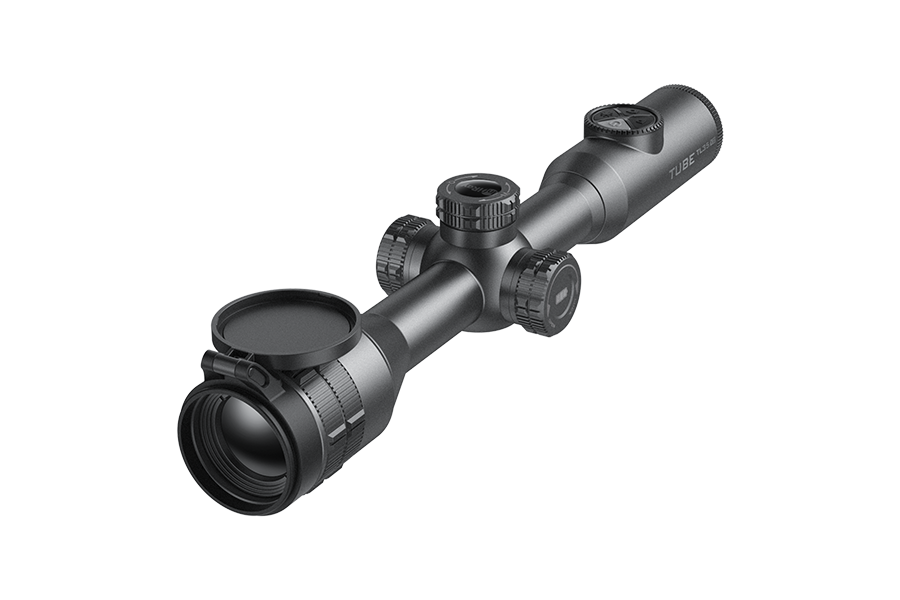

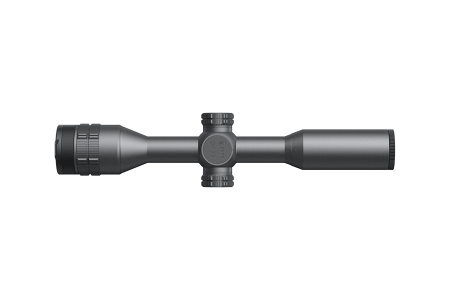

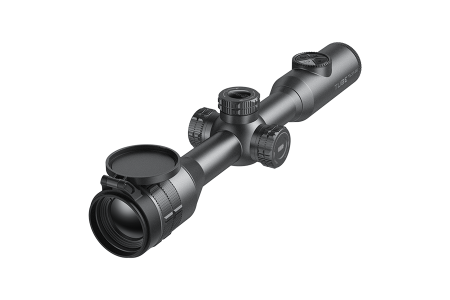

Thermal Imaging Riflescope Tube TL35V2
The TL35V2 adds new functions to the former TL35 such as an expandable Laser Ranging Function to provide distance measurement, the upgraded OLED display and the built-in Mic to record sound.
TL35V2 comes with an option of an expandable Laser Ranging Finder Function. TL35V2 is able to provide the distance measurement on the screen when the LRF is connected to the device through Bluetooth, earning you more chances to win in every shooting.
TL35V2 is equipped with the practical stadiametric rangefinding function to provide position reference for hunting. It will be automatically turned off once the bluetooth LRF is connected.
TL35V2 adopts a 1024X768 AMOLED display instead of a 1280x960 LCOS display of TL35. The imaging quality will be improved a lot for an AMOLED display will offer better layers and contrast.
TL35V2 is equipped with a MIC function, therefore customers can record the voice too when recording.
Featuring the self-researched, high-performance 12um detector,TL35V2 is able to provides high quality and detailed images.
Built-in ultra-clear mode is designed for bad weather conditions, such as heavy fog and rain. It will make the Tube series more sensitive and capable of providing more details.
Combining the extraordinary sensor and the powerful optics, TL35V, can achieve the detection range up to 1800m.
The working time of built-in battery is up to 12 hours, and the replaceable 18500 battery will provide an additional 3 hours of operation.
TL35V2 comes with 32GB of memory for storing 57,000 images or 48 hours of video. Captured videos and images can be easily transferred to your smartphone at lightning speed via app.
It support Wi-Fi communication via APP (InfiRay outdoor)
Detector Specifications : Type Uncooled Vox
Resolution,pixels 384X288
Pixel size, μm 12
NETD, mK ≤40
Frame Rate, Hz 50
Optical Specifications
Objective Lens, mm 35
Field of View(H×V),° 7.5x5.6
Linear Field of View(H×V),m at 100m 13.1x9.9
Optical Magnification, × 3.0
Digital Zoom, × 1~4
Eye Relief, mm 70
Exit pupil Diameter,mm 6
Diopter,D -4~+4
Detection Range, m
(Target size: 1.7m×0.5m, P(n)=99%) 1800
Display Specifications
Type AMOLED
Resolution,pixels 1024*768
Battery Power Supply
Battery Built-in battery/6600mAh + replaceable 18500 battery/3.7V
Max. Operating Time (t=22ºC), h* 15
External Power Supply 5V (Type C)
Functions
Wi-Fi/APP Support (InfiRay outdoor)
Photo/Video Recorder Support
MIC Support
Bluetooth Support
Operational Characteristics
Memory Capacity,GB 32GB
IP rating IP67
Operating Temperature, °C -20 ~ +50
Max. recoil power on rifled weapon (Eo), Joules 6000
Compatible mounts Standard 30 mm rings
Weight (without the 18500 battery), g <950
Dimension,mm 385× 85 × 75
The TL35V2 adds new functions to the former TL35 such as an expandable Laser Ranging Function to provide distance measurement, the upgraded OLED display and the built-in Mic to record sound.
TL35V2 comes with an option of an expandable Laser Ranging Finder Function. TL35V2 is able to provide the distance measurement on the screen when the LRF is connected to the device through Bluetooth, earning you more chances to win in every shooting.
TL35V2 is equipped with the practical stadiametric rangefinding function to provide position reference for hunting. It will be automatically turned off once the bluetooth LRF is connected.
TL35V2 adopts a 1024X768 AMOLED display instead of a 1280x960 LCOS display of TL35. The imaging quality will be improved a lot for an AMOLED display will offer better layers and contrast.
TL35V2 is equipped with a MIC function, therefore customers can record the voice too when recording.
Featuring the self-researched, high-performance 12um detector,TL35V2 is able to provides high quality and detailed images.
Built-in ultra-clear mode is designed for bad weather conditions, such as heavy fog and rain. It will make the Tube series more sensitive and capable of providing more details.
Combining the extraordinary sensor and the powerful optics, TL35V, can achieve the detection range up to 1800m.
The working time of built-in battery is up to 12 hours, and the replaceable 18500 battery will provide an additional 3 hours of operation.
TL35V2 comes with 32GB of memory for storing 57,000 images or 48 hours of video. Captured videos and images can be easily transferred to your smartphone at lightning speed via app.
It support Wi-Fi communication via APP (InfiRay outdoor)
Detector Specifications : Type Uncooled Vox
Resolution,pixels 384X288
Pixel size, μm 12
NETD, mK ≤40
Frame Rate, Hz 50
Optical Specifications
Objective Lens, mm 35
Field of View(H×V),° 7.5x5.6
Linear Field of View(H×V),m at 100m 13.1x9.9
Optical Magnification, × 3.0
Digital Zoom, × 1~4
Eye Relief, mm 70
Exit pupil Diameter,mm 6
Diopter,D -4~+4
Detection Range, m
(Target size: 1.7m×0.5m, P(n)=99%) 1800
Display Specifications
Type AMOLED
Resolution,pixels 1024*768
Battery Power Supply
Battery Built-in battery/6600mAh + replaceable 18500 battery/3.7V
Max. Operating Time (t=22ºC), h* 15
External Power Supply 5V (Type C)
Functions
Wi-Fi/APP Support (InfiRay outdoor)
Photo/Video Recorder Support
MIC Support
Bluetooth Support
Operational Characteristics
Memory Capacity,GB 32GB
IP rating IP67
Operating Temperature, °C -20 ~ +50
Max. recoil power on rifled weapon (Eo), Joules 6000
Compatible mounts Standard 30 mm rings
Weight (without the 18500 battery), g <950
Dimension,mm 385× 85 × 75
Specifications
Magnification
|
3,1-12,4 x |
Field of view, degrees
|
7.5°x5.7 ° |
E-Barometer
|
No |
Smart Range Finder
|
Stadiometer |
Electronic Compass
|
No |
Smooth Zoom
|
Yes |
Microphone
|
Yes |
Dimensions
|
385× 85 × 75 mm |
Warranty
|
2 years |
Brand
|
InfiRay |
LRF
|
Optional |
