Description
The SA32 is the most the upgraded version of the classic SA series. The SA32 features a ballistic calculator to boost your accuracy and features a 12um, NETD≤25mK,50Hz thermal image sensor that delivers higher image resolution and image clarity. With the use of Infrared Image Enhancement Algorithm (IREA), you experience rich image details and exceptional target recognition. 1300 yard detection range allows users to precisely acquire their targets at a much longer range.

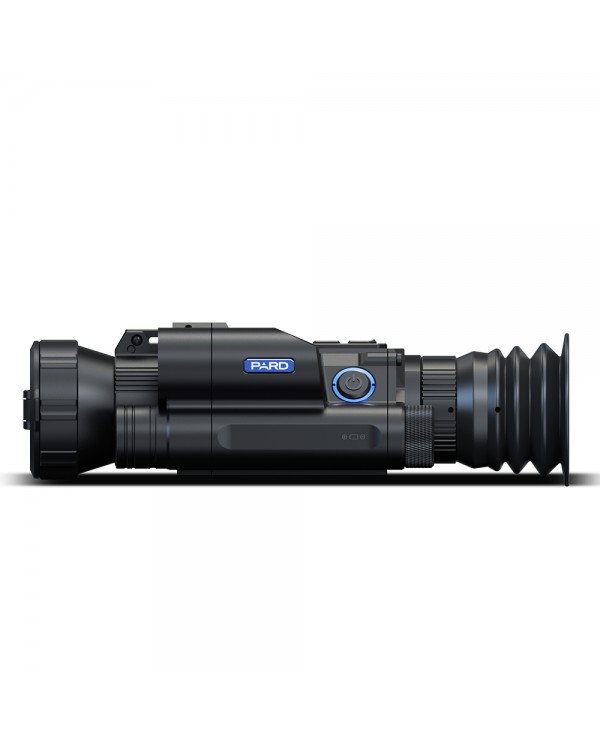

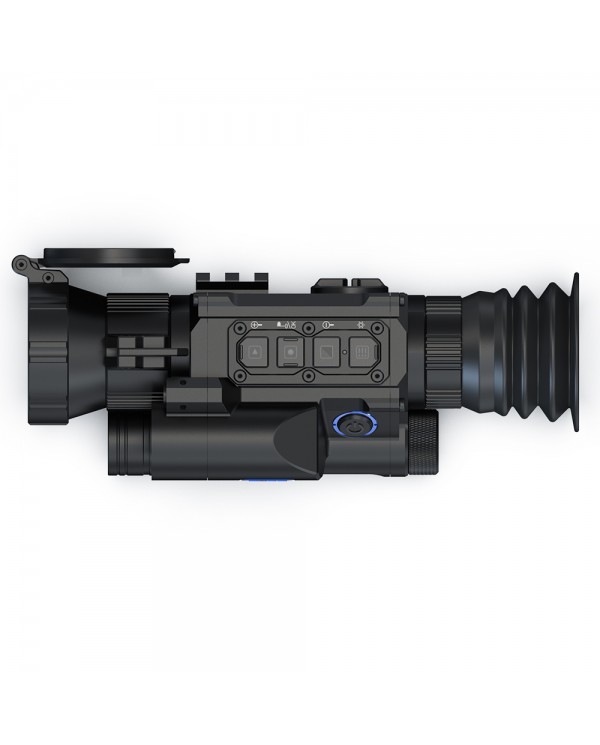

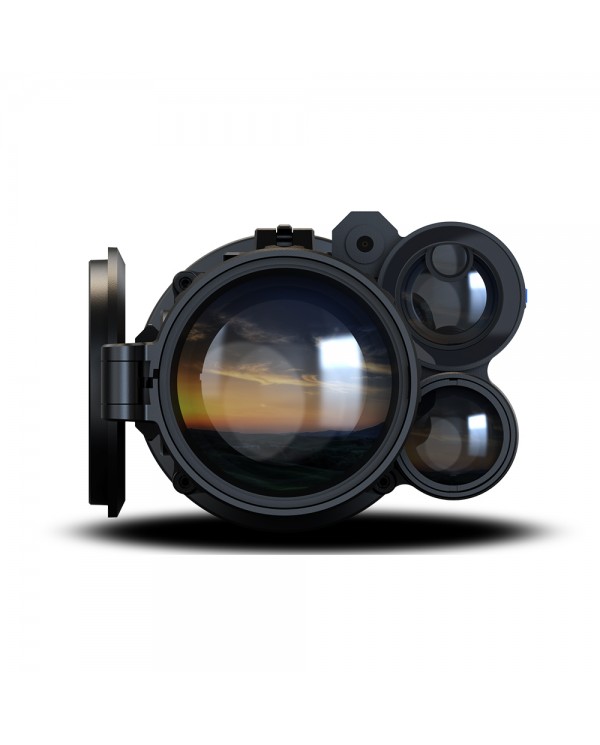

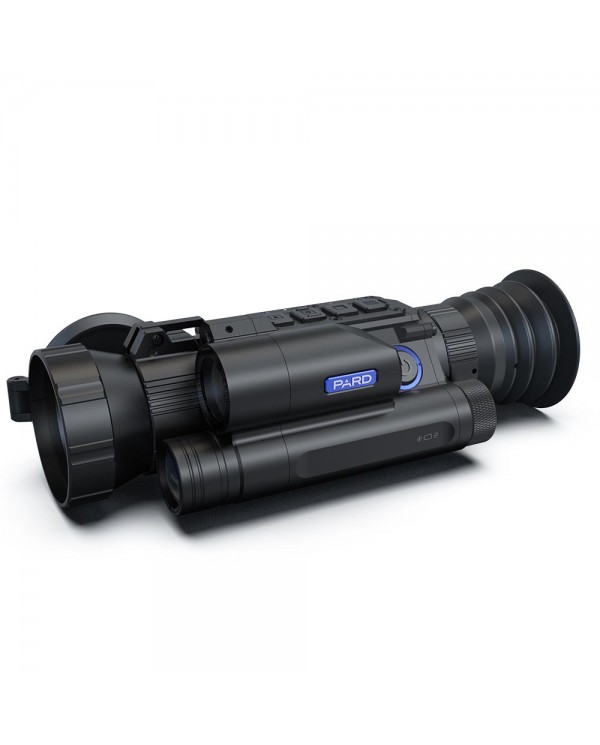

The SA32-35 is a compact and lightweight multifunctional thermal imaging device with a 35mm lens. It is streamlined, balanced and lightweight. At only 420g, it easily mounts on your favorite rifle with the included aircraft grade aluminum mounting bracket. It features a 1-4x digital zoom magnification that enlarges the target. With a 7.5 field of view (FOV), you have a great sense of where the target is in relation to the environment. Resolution of the eyepiece is 1024x768 OLED and backs up the 384x288 thermal sensor allowing the SA32-35 to sense targets at up to 2000m. With the next generation vanadium oxide IR detector pixelation of 12um, (micrometers) and a Noise Equivalent Temperature Difference (NETD) of ≦25mK, you get an extremely sensitive device that performs even when environmental thermal contrast is low at great distances. The SA32 offers five thermal display colors for varying conditions and a refresh rate of 50 Hz. The 18650 removable/rechargeable battery provides up to 5 hours of use and can operate in temperature between -20 and 140 F. Conveniently carry a couple extra rechargeable batteries to avoid having to leave the field due to a dead battery. The Ingress Protection (IP) factor rates at an industry leading IP67, providing 100% security against dust and submersion in up to 3ft of water. The SA32-35LRF also features technologically advanced features such as a ballistics calculator, One-Shot Zero, PIP mode, Blind Pixel supplementation correction, Time/Date image stamp, Auto Hot target tracking, Wi-Fi connectivity to your mobile device and video recording for your shot record that can be save to a 128GB SD card.

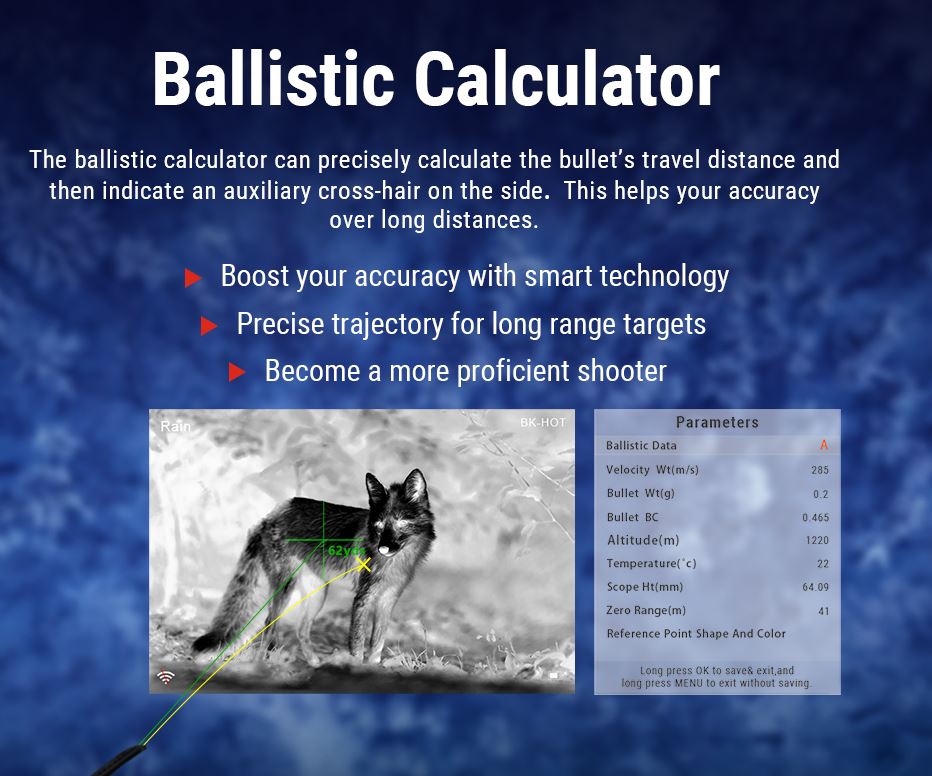

Ballistic calculator.
Precise trajectory for long range targets. If you seek a dependable and reliable device, then the SA32 more than delivers. The ballistic calculator can precisely calculate the bullet’s travel distance and then indicate an auxiliary cross-hair on the side and gives you precise trajectory which enables you to hit long range targets. It is now more accurate providing users with smart techballistic solutions for all your parameters in real time. The new improved ballistic calculator is smooth and absolutely reliable and enables users to undergo a professional and precise shooting experience whilst outdoors. Now you can hunt and shoot knowing you will never miss a target, shot-after-shot.
Infrared Image Enhancement Algorithm (IREA)
lExceptional recognition of targets. lLightning speed processing capability. Correction of image distortion.
The SA32 uses proprietary software, cutting-edge electronic components and signal-processing algorithms to deliver one of the industry’s highest values of sensitivity in infrared spectrum (nighttime sensitivity). Engineered to provide exceptional detection and recognition of targets, stronger high-speed processing capability and correction of image distortion.
Self-activated Recording
Intelligent Recording. Record thrilling moments.
By turning on the self-activated recording, the device will automatically record in 20 second intervals when it senses recoil from the shot. The incremental 20-second video footage will be saved on the TF card.
Shutter Correction
The new advanced shutter correction function offers cutting edge elevation in image optimization when responding to changes in ambient temperature. It automatically updates the offset correction coefficients and adjusts image quality according to specified requirements. This results in a more static image and provides tack sharp clarity boosting detector accuracy.
Video recording + Playback
Capture photos and record videos whilst on the hunting field.
Featuring a 1024*768 OLED HD display. Images are smoother and have more detail. You can take photos and videos, anytime and anywhere. The device can support up to 128G external storage, so you don’t have to worry about running out of storage space. Capture thrilling moments on your hunting trip and share high resolution images of your outdoor adventures on social media.
WiFi
Built in Wi-Fi allows you to connect your phone, PC or tablet as an external viewfinder enabling users to synchronously see the photos and videos on a larger screen. Wi-Fi connectivity is fast and lag free providing you the option to transfer images and videos instantly on the go. Android users can download OKCAM, ppshow and for Apple (IOS) users can download Roadcam app to connect to Wi-Fi.
3 Scene modes
Featuring a quick switch function to choose between 3 scene modes (city/forest/rain). The image will be adjusted according to the selected scene mode offering exceptional adaptability in different environments.
Multiple Color Palettes
Featuring multiple color palettes: white hot/black hot/red hot /iron hot/edge/sky mode. You can choose any color palette to perfectly highlight a target. The user can select the appropriate color palette according to different environmental backgrounds during different weather changes.

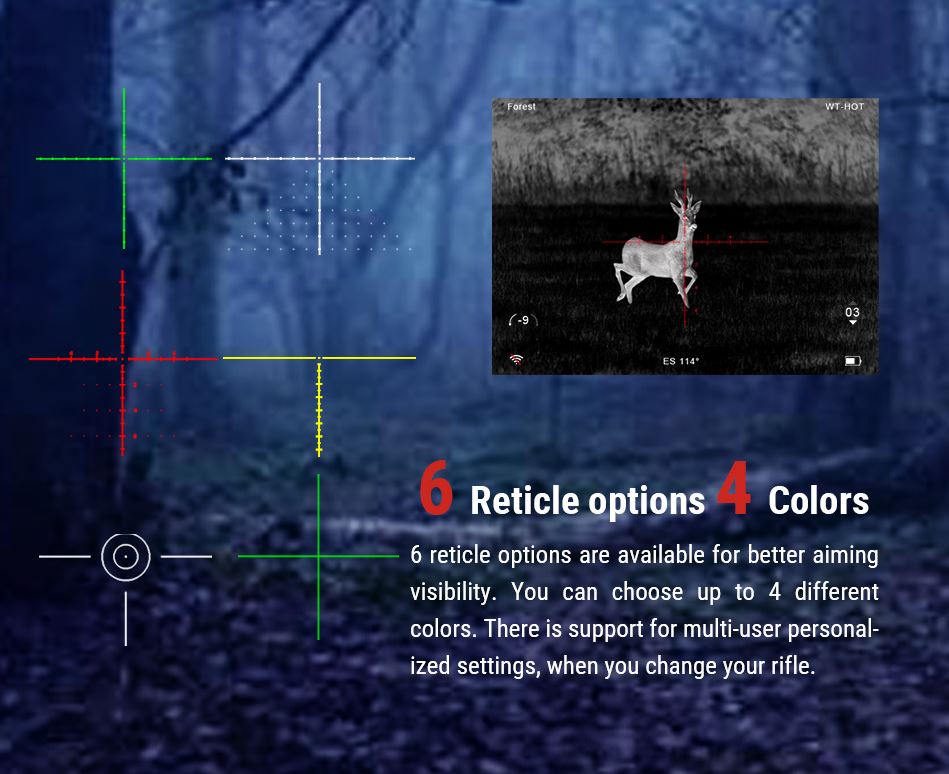

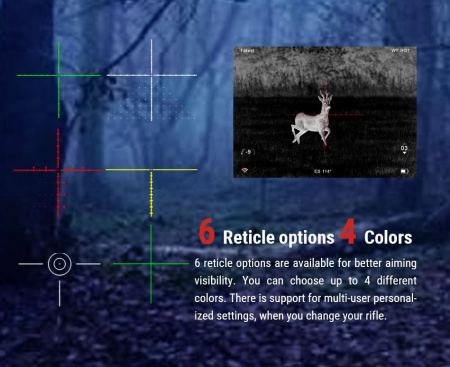

6 reticle options
6 reticle options are available for better aiming visibility. You can choose up 4 different colors. There is support for multi-user personalized settings, when you change your rifle.
Recoil Resistance
The SA32 comes with an impressive recoil resistance of 6000J. It’s recoil proof and suitable to withstand the recoil of high caliber rifles.
Flashlight
The sight has an integrated 100 lumen flashlight and can be used to illuminate and locate various targets even in dark conditions.
Specs :
Objective Len 35 mm
Magnification 3.7x
Resolution(px) 384*288
Pixel Size(um) 12um*12um
NETD ≤25mK
Frame Rate 50Hz
Shutter Mechnical Shutter
Image Engine Pard IREA
Eye Relief 30 mm
Video Record Resolution 1024*768
Exit pupil 6 mm (0.236inch)
Diopter Adjustment -5D~+5D
Ballistic Calculator Yes
PIP Yes
WiFi Yes
TF-Card 128GB(Max)
Gyroscope Yes
Self-motivate Recording Yes
USB Type Type C
HDMI Output Yes
Illuminator 1W
Shock Resistance 6000Joules
Scene Mode City/Forest/Rain
Battery Type Lithium Ion 18650*1
Waterproof IP67
Dimension 195*77*56(mm)
Weight(w/o Battery) 425g
The SA32-35 is a compact and lightweight multifunctional thermal imaging device with a 35mm lens. It is streamlined, balanced and lightweight. At only 420g, it easily mounts on your favorite rifle with the included aircraft grade aluminum mounting bracket. It features a 1-4x digital zoom magnification that enlarges the target. With a 7.5 field of view (FOV), you have a great sense of where the target is in relation to the environment. Resolution of the eyepiece is 1024x768 OLED and backs up the 384x288 thermal sensor allowing the SA32-35 to sense targets at up to 2000m. With the next generation vanadium oxide IR detector pixelation of 12um, (micrometers) and a Noise Equivalent Temperature Difference (NETD) of ≦25mK, you get an extremely sensitive device that performs even when environmental thermal contrast is low at great distances. The SA32 offers five thermal display colors for varying conditions and a refresh rate of 50 Hz. The 18650 removable/rechargeable battery provides up to 5 hours of use and can operate in temperature between -20 and 140 F. Conveniently carry a couple extra rechargeable batteries to avoid having to leave the field due to a dead battery. The Ingress Protection (IP) factor rates at an industry leading IP67, providing 100% security against dust and submersion in up to 3ft of water. The SA32-35LRF also features technologically advanced features such as a ballistics calculator, One-Shot Zero, PIP mode, Blind Pixel supplementation correction, Time/Date image stamp, Auto Hot target tracking, Wi-Fi connectivity to your mobile device and video recording for your shot record that can be save to a 128GB SD card.
Ballistic calculator.
Precise trajectory for long range targets. If you seek a dependable and reliable device, then the SA32 more than delivers. The ballistic calculator can precisely calculate the bullet’s travel distance and then indicate an auxiliary cross-hair on the side and gives you precise trajectory which enables you to hit long range targets. It is now more accurate providing users with smart techballistic solutions for all your parameters in real time. The new improved ballistic calculator is smooth and absolutely reliable and enables users to undergo a professional and precise shooting experience whilst outdoors. Now you can hunt and shoot knowing you will never miss a target, shot-after-shot.
Infrared Image Enhancement Algorithm (IREA)
lExceptional recognition of targets. lLightning speed processing capability. Correction of image distortion.
The SA32 uses proprietary software, cutting-edge electronic components and signal-processing algorithms to deliver one of the industry’s highest values of sensitivity in infrared spectrum (nighttime sensitivity). Engineered to provide exceptional detection and recognition of targets, stronger high-speed processing capability and correction of image distortion.
Self-activated Recording
Intelligent Recording. Record thrilling moments.
By turning on the self-activated recording, the device will automatically record in 20 second intervals when it senses recoil from the shot. The incremental 20-second video footage will be saved on the TF card.
Shutter Correction
The new advanced shutter correction function offers cutting edge elevation in image optimization when responding to changes in ambient temperature. It automatically updates the offset correction coefficients and adjusts image quality according to specified requirements. This results in a more static image and provides tack sharp clarity boosting detector accuracy.
Video recording + Playback
Capture photos and record videos whilst on the hunting field.
Featuring a 1024*768 OLED HD display. Images are smoother and have more detail. You can take photos and videos, anytime and anywhere. The device can support up to 128G external storage, so you don’t have to worry about running out of storage space. Capture thrilling moments on your hunting trip and share high resolution images of your outdoor adventures on social media.
WiFi
Built in Wi-Fi allows you to connect your phone, PC or tablet as an external viewfinder enabling users to synchronously see the photos and videos on a larger screen. Wi-Fi connectivity is fast and lag free providing you the option to transfer images and videos instantly on the go. Android users can download OKCAM, ppshow and for Apple (IOS) users can download Roadcam app to connect to Wi-Fi.
3 Scene modes
Featuring a quick switch function to choose between 3 scene modes (city/forest/rain). The image will be adjusted according to the selected scene mode offering exceptional adaptability in different environments.
Multiple Color Palettes
Featuring multiple color palettes: white hot/black hot/red hot /iron hot/edge/sky mode. You can choose any color palette to perfectly highlight a target. The user can select the appropriate color palette according to different environmental backgrounds during different weather changes.
6 reticle options
6 reticle options are available for better aiming visibility. You can choose up 4 different colors. There is support for multi-user personalized settings, when you change your rifle.
Recoil Resistance
The SA32 comes with an impressive recoil resistance of 6000J. It’s recoil proof and suitable to withstand the recoil of high caliber rifles.
Flashlight
The sight has an integrated 100 lumen flashlight and can be used to illuminate and locate various targets even in dark conditions.
Specs :
Objective Len 35 mm
Magnification 3.7x
Resolution(px) 384*288
Pixel Size(um) 12um*12um
NETD ≤25mK
Frame Rate 50Hz
Shutter Mechnical Shutter
Image Engine Pard IREA
Eye Relief 30 mm
Video Record Resolution 1024*768
Exit pupil 6 mm (0.236inch)
Diopter Adjustment -5D~+5D
Ballistic Calculator Yes
PIP Yes
WiFi Yes
TF-Card 128GB(Max)
Gyroscope Yes
Self-motivate Recording Yes
USB Type Type C
HDMI Output Yes
Illuminator 1W
Shock Resistance 6000Joules
Scene Mode City/Forest/Rain
Battery Type Lithium Ion 18650*1
Waterproof IP67
Dimension 195*77*56(mm)
Weight(w/o Battery) 425g
