InfiRay RICO RH50

This RH50 model of the Rico serie, differ from two of the same serie with longer focal length (50 mm), from here – the more distant object (similar in size to man) detection range (2594m) and big (640x512 pixels) sensor.
The Rico series is a multifunctional and highly expandable infrared thermal imaging product.  The product is featured with alterable laser rangefinder, detachable battery pack,  eyepiece magnification up to 16 times, and comprehensive upgrade of software interface. With the updated, the Rico series also offers advanced image correction and automatic image optimization.


The Rico series is embedded with an infrared,  independently developed high performance VOx  detector, which offers you vivid, highly detailed  thermal images. It is easier to search for targets in  the dark with amazingly sharp image quality.
The high contrast AMOLED micro display with  HD resolution offers sharp image and vivid  colors. The display screen has excellent image  quality and gives a flawless performance, even  in freezing temperature.
The built-in ultraclear mode is especially designed  for harsh weather conditions, such as in heavy fog  and rain. It will be more sensitive and display more  details.

Simple and easy to operate is the initial design intention  of the Rico series. The vivid icon design offers a  visualized guide and translucent background of the  menu display, ensuring the user to observe the target  unobstructed.
The Picture-in-Picture function improves accuracy by providing a 2 x-magnified image of the reticle area, at the top of the display. It helps to magnify the target while maintaining visibility of the entire field of view.
The Rico series features exceptionally high shock resistance up to 1000 G (6000J).
High performance 12 μm pixel pitch detectors are embedded.

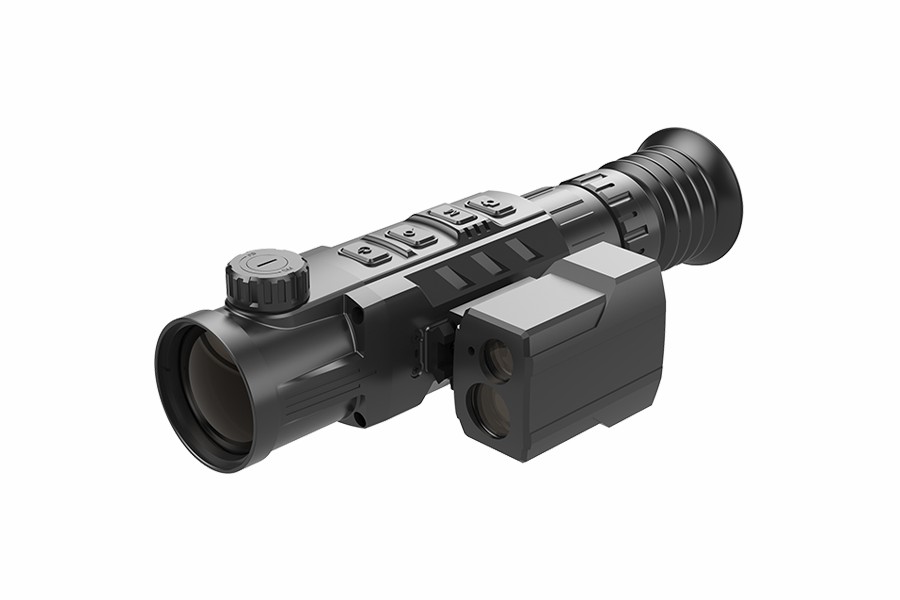

The Rico series offers laser ranging capabilities,  which can accurately capture and display the target  distance with an accuracy of ± 1 m and a maximum  distance of 1000 m. The most accurate laser rangefinder will allow you to get information on the distance to the target with a minimum error at any time of the day at a distance of up to 1000m
The laser rangefinder is an option and is not included in the package and must be purchased separately. Integrated, precision laser rangefinder provides accurate rangefinding in two modes – Single Time Measurement and Scanning mode with ±1 m accuracy up to 1 km distance. Scanning mode allows the shooter to adjust quickly to changing distances for better shot placement.
Powerful objective lens in combination with professional grade thermal imaging sensor with NETD ≤40 mK provides exceptional detection capabilities. A standard 1.8m tall object can be detected at a 2600 m distance in complete darkness.

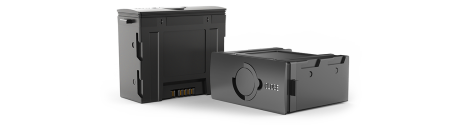

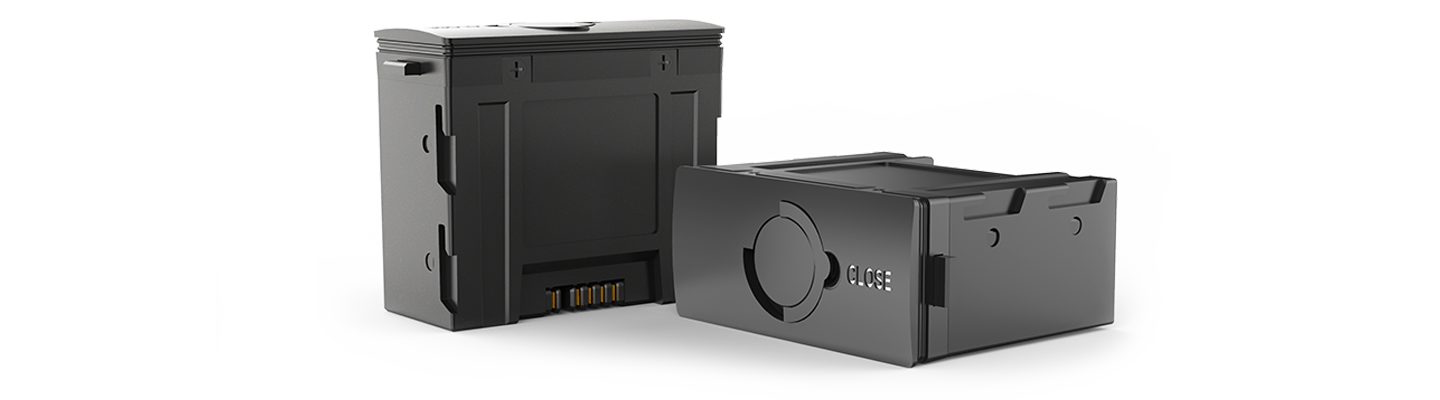

The Rico series support a 3.7 V, 4400 mAh large capacity battery pack that operates for 6 hours. With  the ability to maintain continuous power supply at  any time outdoors, it provides an ideal battery  solution. The batteries can be quickly removed and  replaced with new ones in a matter of seconds. The Rico series offer video record and image capture during  observation. The video and photo can be easily transmitted  via wired or WiFi connection. The Built-in video recorder is a great asset when it comes to filming or taking photos of once-in-a-lifetime experiences. One press of the REC button captures footage that can be shared easily with colleagues, friends and family. 32 Gb of internal memory provide many hours of recorded video and tons of photos.
The built-in accelerometer and digital compass improves accuracy by precisely identifying cant and angles. It can indicate the direction and degree of lateral tilting.

In set : Thermal imaging sight Rico RH50- 1pc, Protective lens hood – 1pc, Rico Battery Pack – 2pcs, Fastening on Weaver - 1 piece, USB cable - USB-C – 1pc, Bag for transportation – 1pc, Mounting screws - 2 pcs, Instruction manual – 1pc

Specification :
Detector   Resolution    640x512
Pixel   Size, μm    12
NETD, mK    ≤40
Frame   Rate, Hz    50
Eye   Relief, mm    55
Exit Pupil   Diameter, mm    6
Magnification, ×    3~12
Objective Lens    F50 / 1.1
Display Resolution    1024×768 AMOLED
Display Size, inch    0.39
Laser   Rangefinder    Optional
Battery    3.7 V / 4400mAh
Max.   Battery Life, h    6
Degree of protection,   IP code    IP67
Amount of   built-in memory, GB    32
Weight (without batteries), g    840
Dimension, mm    250x61x58
Detection Range, m (Target size: 1.7 m×0.5 m (approx.- man size) , P(n) = 99%) :    2594 m
