Infiray CABIN CBL 25MM termokamera

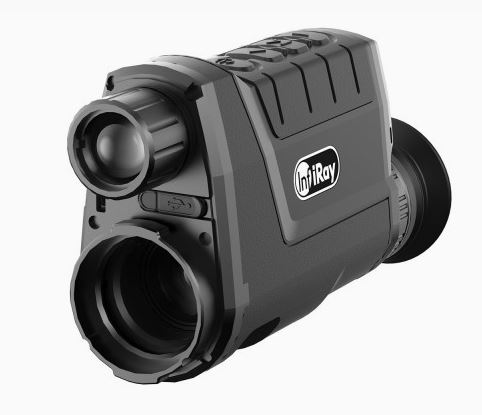

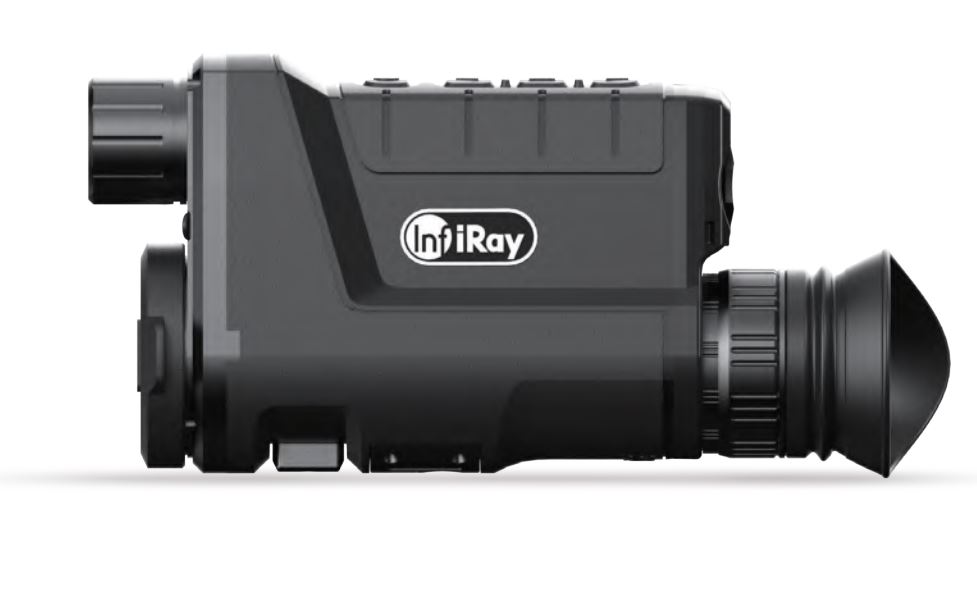

Thermal imaging scope Cabin CBL 25

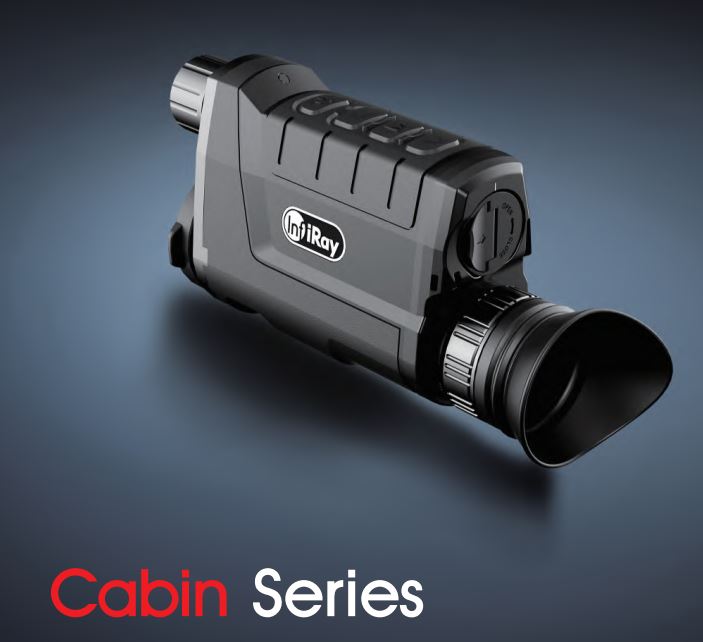

The Cabin series is a small, light, and easy to hold and operate thermal imaging monocular.

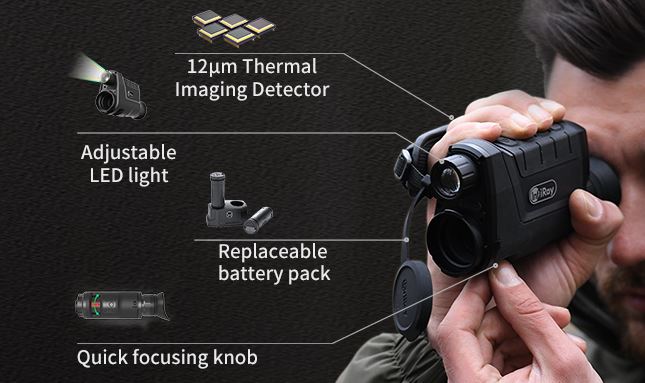

The clear image, quick-release battery pack, quick focusing knob, built-in LED light and other features make it the most comfortable and easy-to-use helper for outdoor observation.  It adopt high-performance 12‑um detector. 50 Hz frame rate captures every detail you are interested in.  High resolution 1280 x 960 display provides clear and colorful images.
Cabin has built-in self-developed high-performance VOx (Vanadium Oxide) detectors,  made using 12µm technology with the highest and most stable sensitivity of <40mK for highly detailed images of thermal objects.. Equipped with high-performance electronic equipment and superior infrared optics, it can provide ultra-clear thermal images, making detection and identification easy and efficient during the day or night.
The patented ULTRACLEAR image engine delivers up to 20% more detail in difficult weather conditions, whether it's snow, storm or heavy rain. The algorithm is based on the MATRIX 3 intelligent frame processor for the most clear picture during operation. Built-in InfiRay detector and matched with MatrixⅢTM powerful algorithm designed to increase imaging clarity and overall image detail. MatrixⅢTM results in a sharper, more detailed field of view and enhanced object identification capabilities.
Built-in motion sensor and electronic compass accurately identify the angle and inclination.
Record on the memory of the thermal imager any moments during the observation, whether it is a rare animal or an offense, at your disposal 16Gb of internal memory and live broadcast to devices running Android and iOs.
Install an app to manage and stream video on your mobile device. Shoot videos, create epic moments and send them to us, we will publish them on our channel.

Based on estimated heights of targets user can get the rough distance from the target with the build-in stadiametric rangefinder fast and easy.
The built-in laser pointer will allow you to hunt in tandem with a night or day sight to illuminate the target for your partner.
Provide a 2×magnified area on the top to help to magnify the target while keeping the rest of the field of view visible.
The 16 GB internal storage provides 24 hours of video recording or 20,000 images capacity. WiFi mode allows up to 4 simultaneous connections.
Built-in ultra-clear mode is suitable for bad weather conditions, such as fog and rain. This mode is more sensitive to show more details.
Cabin is equipped with a 3.6V, 3100 mAh large-capacity battery pack, which can work continuously for 7.5 hours. The battery can be quickly removed and inserted in a few seconds, providing an ideal battery solution.

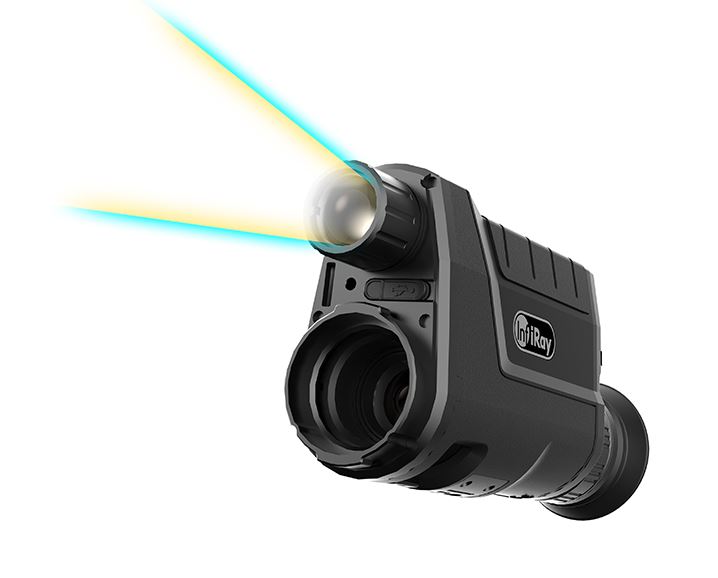

Cabin is equipped with imported 3w LED lamp bead, and has the function of two-gear switching and zooming. The irradiation distance can reach 50 m, providing you with necessary lighting for search and rescue. Use and focus a powerful LED flashlight for safe movement while hunting or hiking, 2 intensities are available for you and manual beam adjustment for the most comfortable use.

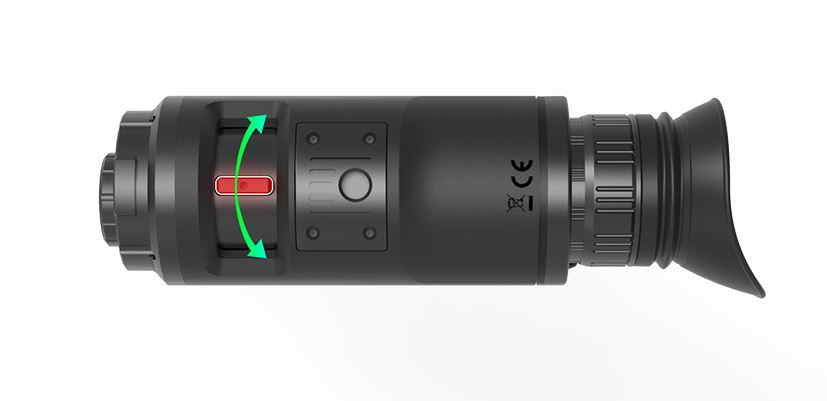

Cabin uses the focusing knob to adjust the focus within a range of 100°, allowing you to see the target more quickly.  The patented lens focus allows you to quickly and accurately focus on the target without any hassle, just slide the ring and get the result.
Use 5 preset palettes to pinpoint your target, as each palette is designed for a specific task.
Rain, snow or storm - it doesn't matter, you can use the thermal imager without fear, the design of the monocular is protected by the IP 66 standard.



In set :
- Thermal imaging monocular  Cabin CBL 25- 1pc
- Batteries IBP-2 - 2pcs
- Straps for the arm and neck - 1pc

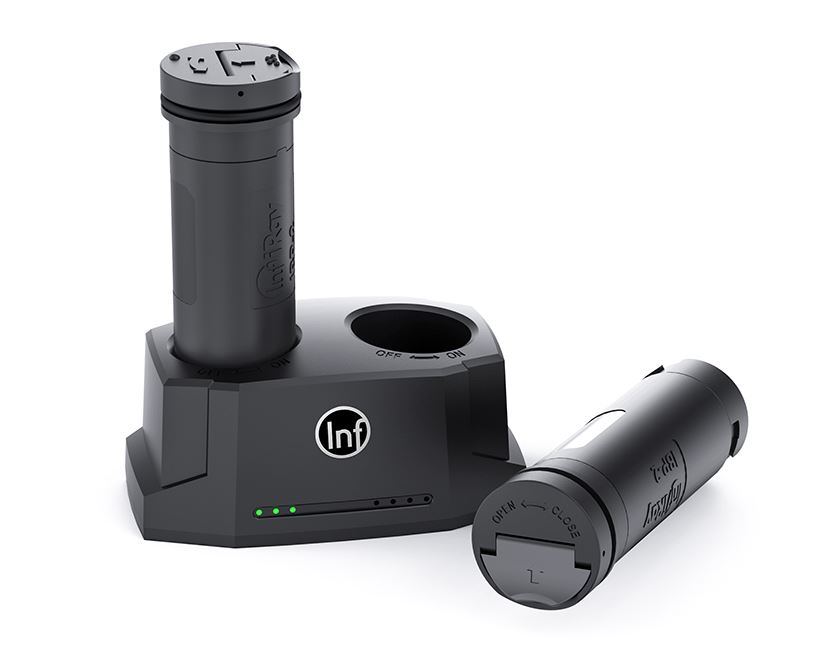

- Charging station for IBP-2 - 1pc
- USB cable - Type-C - 1pc
- Bag for transportation - 1pc
- Microfiber for cleaning - 1pc
- Instruction manual - 1pc


Specification :
Detector Resolution, pixels    384×288
Pixel Size, μm    12
NETD, mK    ≤40
Frame Rate, Hz    50
Objective Lens, mm    25
Field of View, degrees    10.5 º×10.4 º
Optical magnification, x    2.5-10
Digital zoom, x    1x-4x
Exit pupil diameter, mm    20
Focusing range of eyepiece, D    -5～+5
Display Resolution, pixels    1280×960 LCOS
Battery type    Li-ion
Max Battery Life, h    ≤7.5
Amount of built-in memory, GB    16
APP compatibility    Support
Dimension, mm    165×50×85
Weight(without replaceable battery), g    380
Detection Range, m
(Target size:1.7m×0.5m,P(n)=99%)
