Description

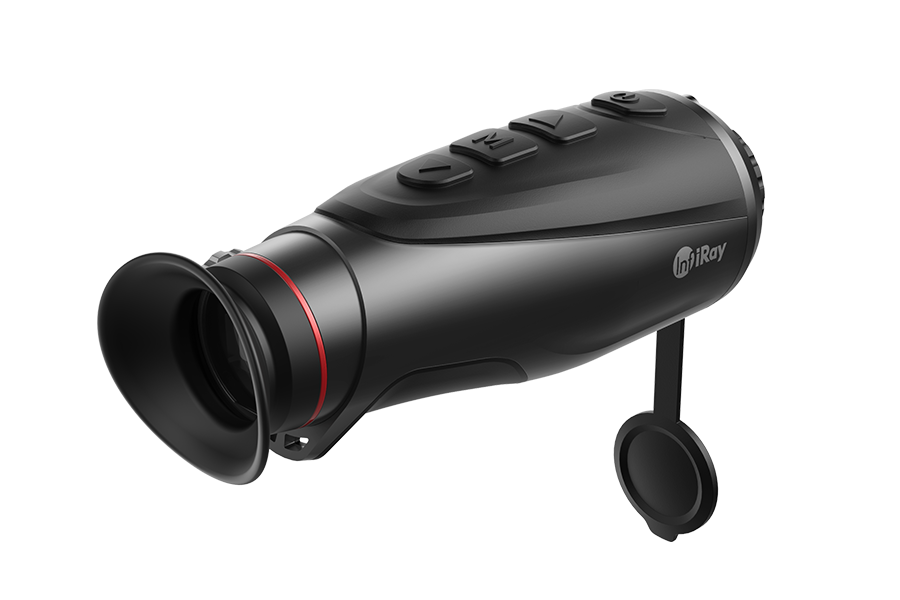

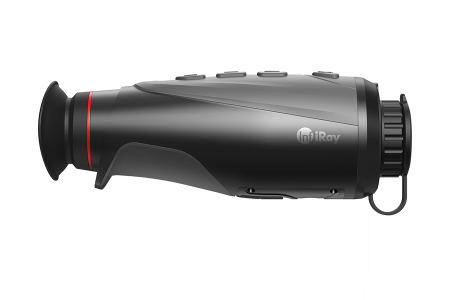

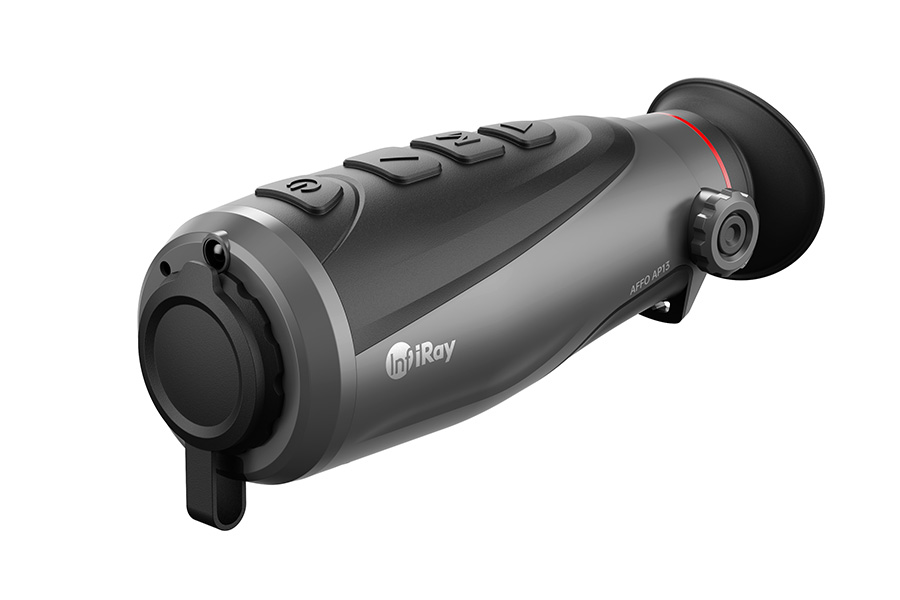

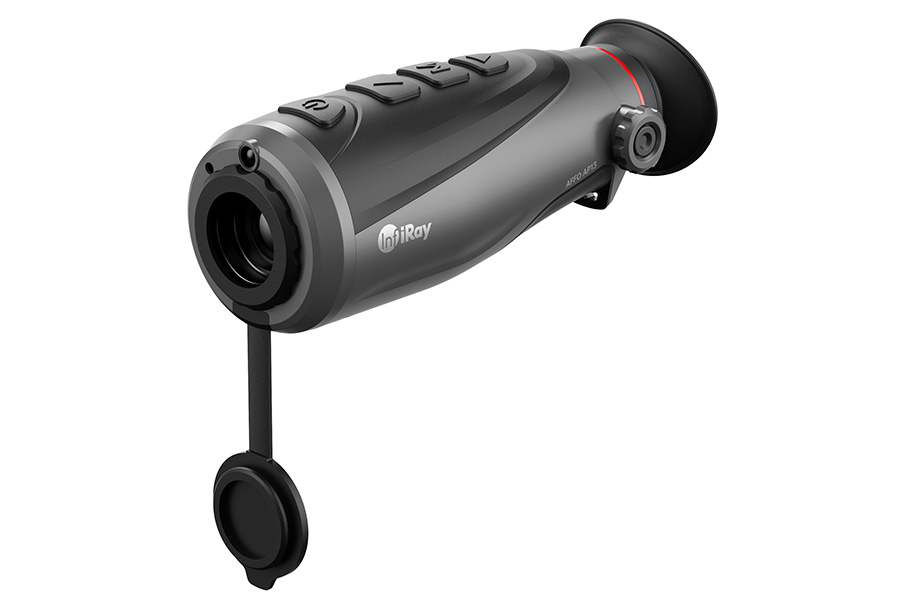

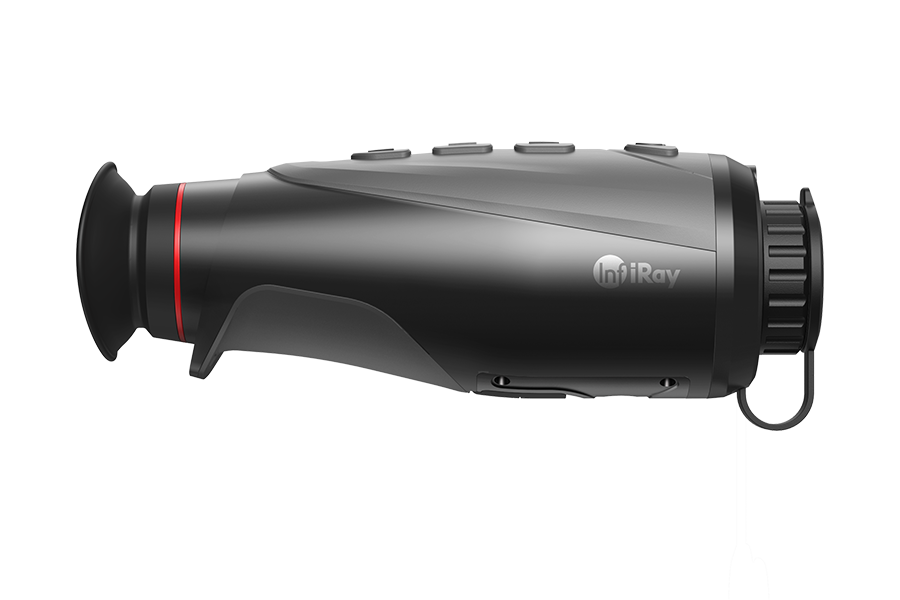

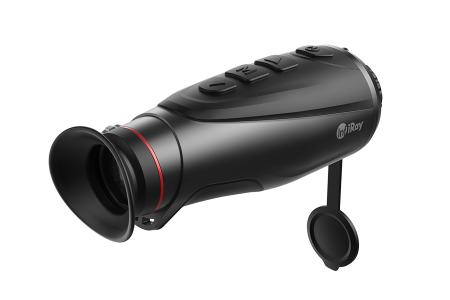

InfiRay AP13 is handheld thermal imaging monocular from the AFFO Series is an entry-level thermal monocular for hunting users, featuring both a fashionable appearance and a more compact size. The AFFO Series uses a self-developed 12μm detector to produce crisp images and supports photo taking and video recording with its built-in high-speed 32GB storage capacity.
The AFFO Series adopts 12 um uncooled Vox thermal imaging sensor, the self-developed high-performance sensor enables crisp HD images.
Rounded curve-design body fits human hand shape, making it more comfortable to hold. With the compact size, it is easier to carry with along your adventure.
Designed with HDMI interface (high-definition multimedia interface) uses full digital signal transmission, which not only provides full digital video signal, but also transmits audio at the same time. This device can be directly connected to HD screens, laptops, etc. for high-quality display.
Low power elements used in AFFO Series provide sufficient operation time. Up to 9.5 hours operational battery life.
The AFFO Series features additional practical functions including stadiametric rangefinding and PIP. Its adapter is equipped with multiple travel charging headers to meet the needs of use in different countries and regions.
Stadiametric Rangefinding: Facilitate confirmation of prey distance and provide position reference for hunting.
PIP: (Picture in picture) The screen of cursor position is magnified twice to highlight the target and assist in observing the target details.
Hot target highlight mode provides better object highlighting capability with more options of white hot, black hot, red-hot and color palette. Wider detection and operating temperature ranges with hotspot tracking function.
Upgraded lens protection: Durable rigid plastic lens cap with higher hardness and impact resistance;
Upgraded waterproofing: External screen is used in rainy days for outdoor scenarios to prevent water flowing into the interface.
The 32GB memory of AFFO Series makes it possible to record all night, meeting the requirements of whole-hunting process recording.
Sensor Type Uncooled Vox
Resolution 256×192
Pixel Pitch, μm 12
NETD, mK ≤ 40
Frame Rate, Hz 25
Objective Lens, mm 13
FOV 13.5°×10.1°
Digital Zoom, x 1 / 2
Diopter, D -3 ~ +1
Detection Range, m (Target Size: 1.7m×0.5m, P(n)=99%) 675 m
Display Type LCOS
Resolution 720×540
Battery Type/Capacity/Output Voltage Built-in lithium ion battery / 3.6Ah / 3.6V
Working Hours (22°C), h* 9.5
External Power Supply 5V (Type C)
Ingress Protection Rating IP67
Memory Capacity, GB 32
Wi-Fi/APP Support (InfiRay outdoor)
Operating Temperature, ºC -10~ +50
Weight, g <340
Dimensions, mm 160×60×60
The AFFO Series adopts 12 um uncooled Vox thermal imaging sensor, the self-developed high-performance sensor enables crisp HD images.
Rounded curve-design body fits human hand shape, making it more comfortable to hold. With the compact size, it is easier to carry with along your adventure.
Designed with HDMI interface (high-definition multimedia interface) uses full digital signal transmission, which not only provides full digital video signal, but also transmits audio at the same time. This device can be directly connected to HD screens, laptops, etc. for high-quality display.
Low power elements used in AFFO Series provide sufficient operation time. Up to 9.5 hours operational battery life.
The AFFO Series features additional practical functions including stadiametric rangefinding and PIP. Its adapter is equipped with multiple travel charging headers to meet the needs of use in different countries and regions.
Stadiametric Rangefinding: Facilitate confirmation of prey distance and provide position reference for hunting.
PIP: (Picture in picture) The screen of cursor position is magnified twice to highlight the target and assist in observing the target details.
Hot target highlight mode provides better object highlighting capability with more options of white hot, black hot, red-hot and color palette. Wider detection and operating temperature ranges with hotspot tracking function.
Upgraded lens protection: Durable rigid plastic lens cap with higher hardness and impact resistance;
Upgraded waterproofing: External screen is used in rainy days for outdoor scenarios to prevent water flowing into the interface.
The 32GB memory of AFFO Series makes it possible to record all night, meeting the requirements of whole-hunting process recording.
Sensor Type Uncooled Vox
Resolution 256×192
Pixel Pitch, μm 12
NETD, mK ≤ 40
Frame Rate, Hz 25
Objective Lens, mm 13
FOV 13.5°×10.1°
Digital Zoom, x 1 / 2
Diopter, D -3 ~ +1
Detection Range, m (Target Size: 1.7m×0.5m, P(n)=99%) 675 m
Display Type LCOS
Resolution 720×540
Battery Type/Capacity/Output Voltage Built-in lithium ion battery / 3.6Ah / 3.6V
Working Hours (22°C), h* 9.5
External Power Supply 5V (Type C)
Ingress Protection Rating IP67
Memory Capacity, GB 32
Wi-Fi/APP Support (InfiRay outdoor)
Operating Temperature, ºC -10~ +50
Weight, g <340
Dimensions, mm 160×60×60
