45 €
Article:
79154
In stock:Few
Add to Cart
The price is valid only for the online store and may differ from the prices in retail stores.
Need a consultation?
Our experts will answer to any question
Ask a question
Description

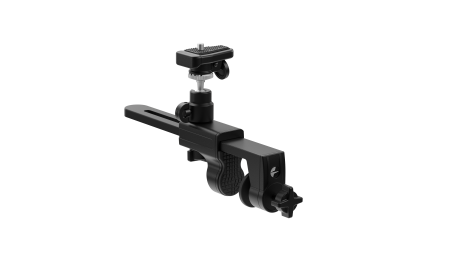

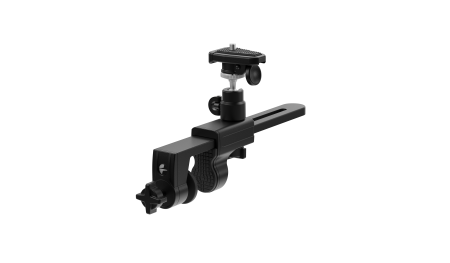

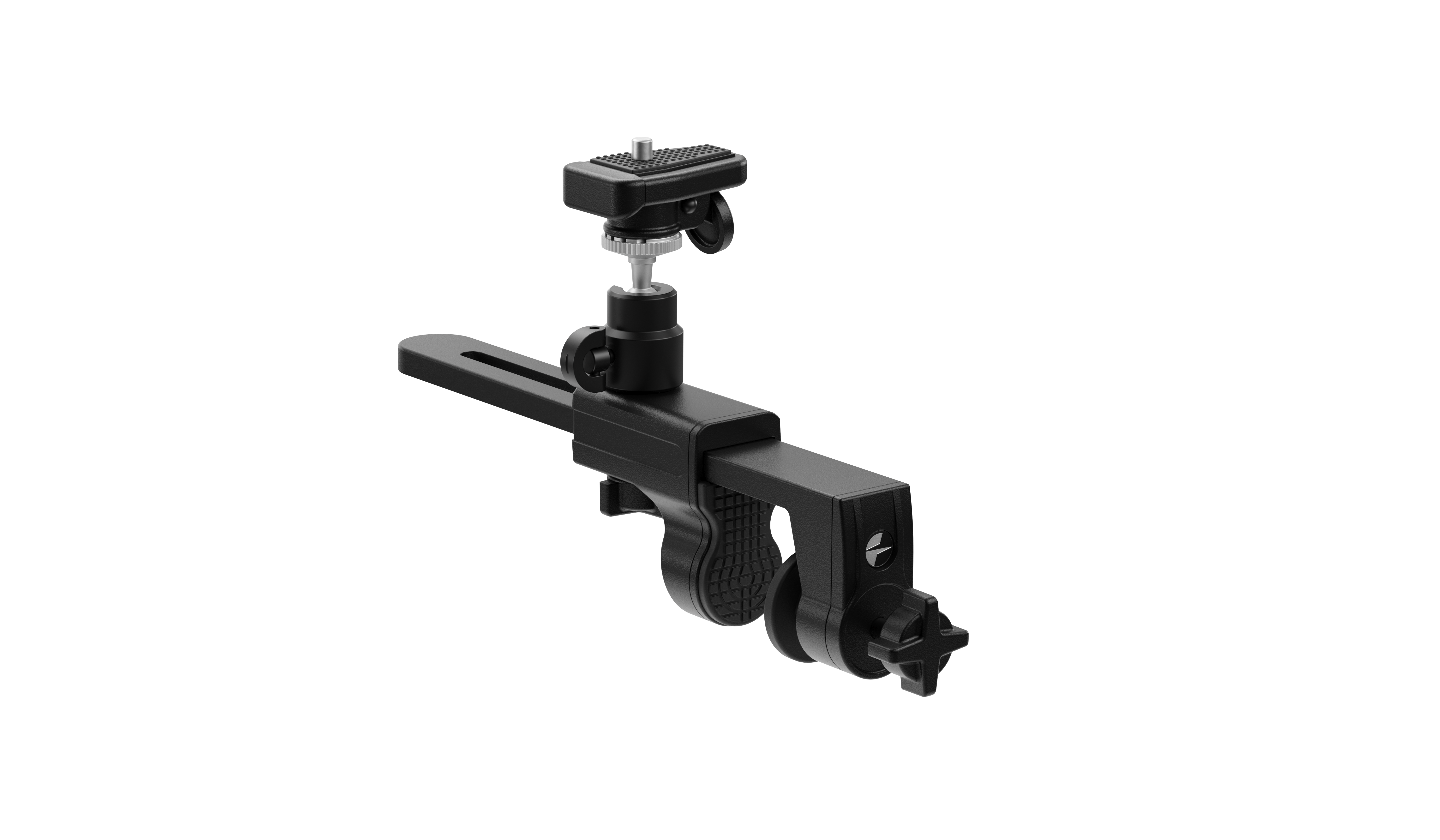

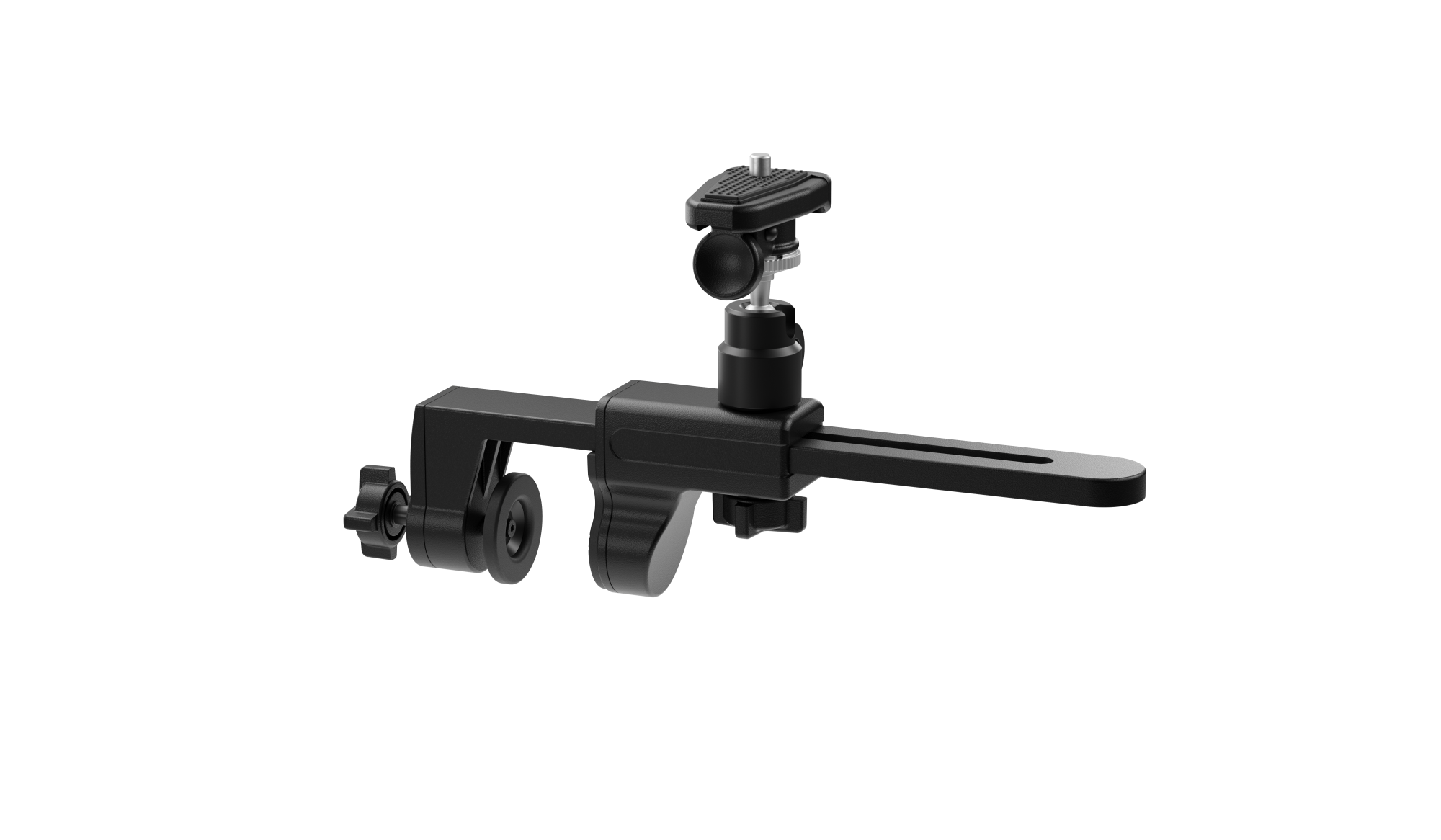

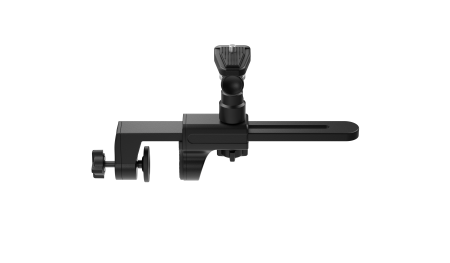

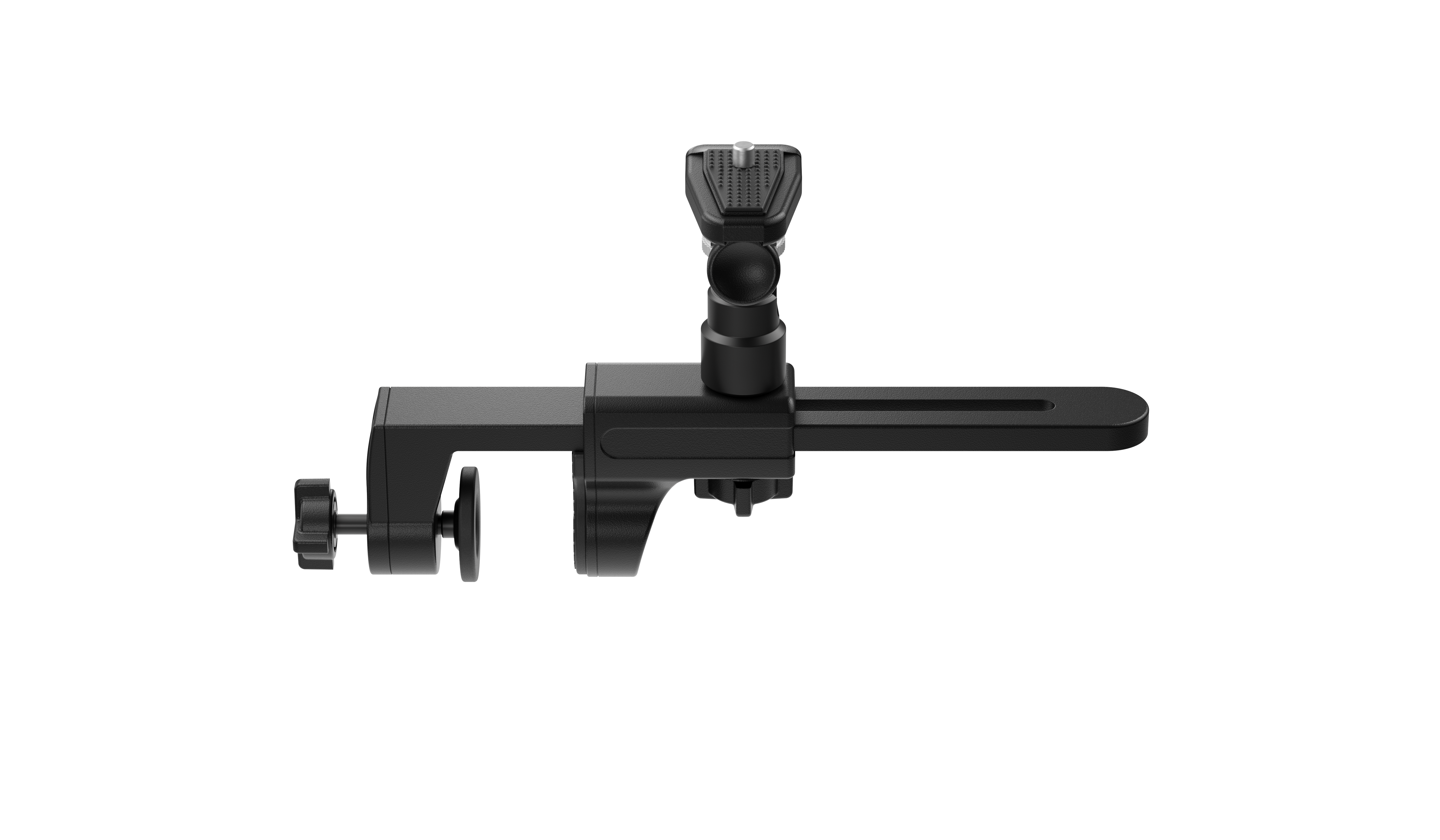

Pulsar C-Clamp is designed for mounting Pulsar units equipped with a 1/4" tripod on various elements (cross beam, handrail etc.). The swivel/pivoting ball head allows the Pulsar unit to be mounted in a suitable position

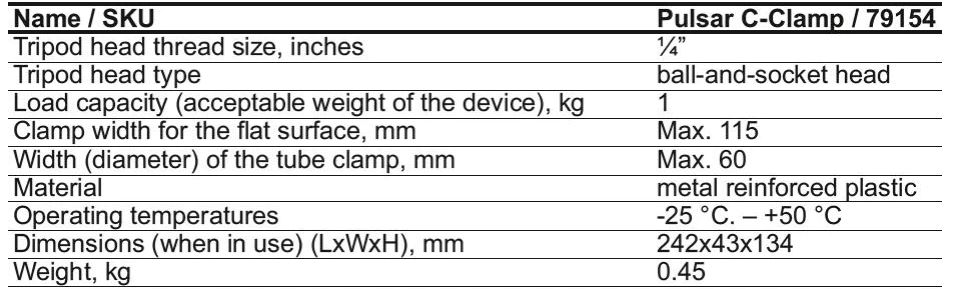

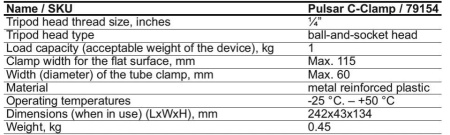

Dimensions (mm): 242 х 43 х 134
Weight (kg): 0.45
Warranty: 3 years
Service

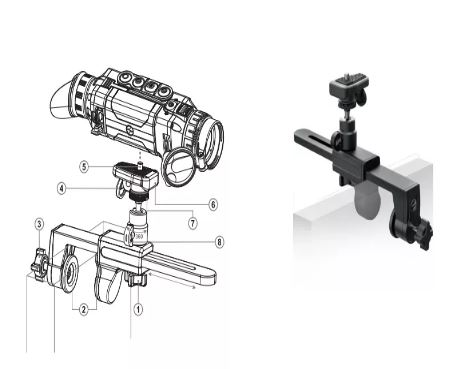

-The distance between the closures (2) of the C-clamp according to the size of the mounting
Element. Turn the knob (1) if necessary.
-Turn the knob (1).
- Fix the C-Clamp on desired surface and turn the knob (3) to make sure the C-Clamp is stable.
- Loosen the screw (8) and bring the swivel platform (7) to the vertical position.
-Secure the swivel platform by turning the screw (8) clockwise.
-Remove the top part (6) from the swivel platform (7) by pressing the lever (4) and pulling the platform.
-Screw the platform screw (5) into the tripod mount a PULSAR unit.
-Secure the top part of the platform with a unit in place.
-Use the screw (8) for further adjustment of the unit position.
