Leica PRS 5-30x56i Ballistic

Leica PRS 5-30x56 iis the first focal plane long-range specialist with 6x zoom.
With the new Leica PRS 5-30x56i, Leica Sport Optics presents a top-class riflescope for long-range sport shooting – in a perfect design.  Its magnification range of 5x to 30x offers a wide array of uses – from long-range target shooting to competitions over extreme distances and under the most difficult conditions.
Equipped with 6x zoom and three different reticles in the first focal plane: a classic L-4a reticle, a ballistic reticle with hold marks, and a special PRB reticle for precision rifle shooting. – specially designed for long-range shooting and hunting. Thanks to its high magnification range and extremely large elevation range (height adjustment on the reticle), you can meet any challenge and react quickly and accurately, particularly when shooting over varying long distances.
The shooter can concentrate fully on the target: High light transmission of over 90% masters even challenging light conditions. The large adjustment range of the reticle in the first focal plane is ideal for the longest distances.
Tool-free zeroing of the turrets ensures fast and flexible operation under extreme conditions. Thanks to the “zero stop” function, shooters can quickly and and easily adjust the Leica PRS 5-30x56i to their individual requirements, using the on-board tool. Its functional design is geared to the particular needs of long-range shooters: Extremely rugged and uncompromisingly made of high-quality aluminum, allowing intuitive and safe handling in any shot situation.
The center tube diameter is 34mm, and all models have reticle illumination. The sun visor and the screw-in throw lever are included in the scope of delivery.

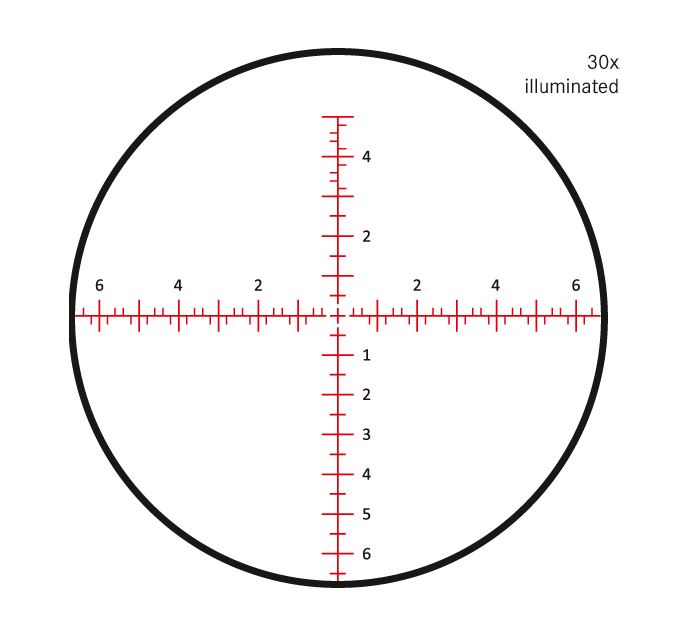

Reticle L-Ballistic
With a crosshair thickness of 0.2 in/0.5 cm and distance between vertical guidelines of 4.9 in/12.5 cm, these are the reticles for precise shots at longer distances. Line/dot markings enable sighting on the target with the necessary ballistic trajectory correction without the need to change the reticle setting – as long as the distance to the target and the ballistic characteristics of the ammunition used are known.
Dot coverage in cm at 10x magnification and 100m distance

Reticle L-Ballistic
With a crosshair thickness of 0.2 in/0.5 cm and distance between vertical guidelines of 4.9 in/12.5 cm, these are the reticles for precise shots at longer distances. Line/dot markings enable sighting on the target with the necessary ballistic trajectory correction without the need to change the reticle setting – as long as the distance to the target and the ballistic characteristics of the ammunition used are known.
Dot coverage in cm at 10x magnification and 100m distance


Essentials :
- 6x zoom (5-30x) for flexible use in long-range sport shooting and competitions
- >100 MOA adjustment range of the reticle in the first focal plane
- Tool-free zeroing of the turret scales, on-board tool for “zero stop”
- Extremely rugged, high-quality workmanship for safe handling
- Zero stop can be activated or deactivated, and set individually (tool in windage turret)
- With multi-turn rapid reticle adjustment BDC (Bullet Drop Compensator)
- Outstanding optics

Front lens diameter: 56 mm
Magnification: 5 – 30 x
Zoom: 6 x
Field of view at max. magnification (m/100 m: ) 1.42 yds /1.3 m
Field of view at min. magnification (m/100 m) : 9 yds / 8.2 m
Eye relief:  > 90 mm
Exit pupil : 9 - 2 mm
Parallax : adjustable, 21.9 yds / 20 m to infinity
Diopter compensation:  –3/+1 dpt
Coating:  AquaDura® coating
Transmission : > 90 %
Mounting option:  34 mm rings
Impact point correction:  0.1 Mil = 0.1 mrad = 1 cm/100 m per click
Reticle adjustment range (height / side) : 320 / 180 cm, 32/18 Mil (100 m)
Front lens filter thread:  M 62 x 0.6 mm
Length : 14.37 inch / 365 mm
Weight : 36.3 oz /1.030 g
Watertightness : Watertight to a depth of 13 ft / 4 m, nitrogen filled
Focal plane reticle:   1st focal plane
Reticle illumination:   Dot / scale
Reticle illumination : 4 h

In package : Sunshade, tools, Throw Lever, cleaning tissue, battery
