990 €
Article:
CD35
In stock:Not available
By order
Our managers will contact you and clarify the terms of the order
The price is valid only for the online store and may differ from the prices in retail stores.
Need a consultation?
Our experts will answer to any question
Ask a question
Description

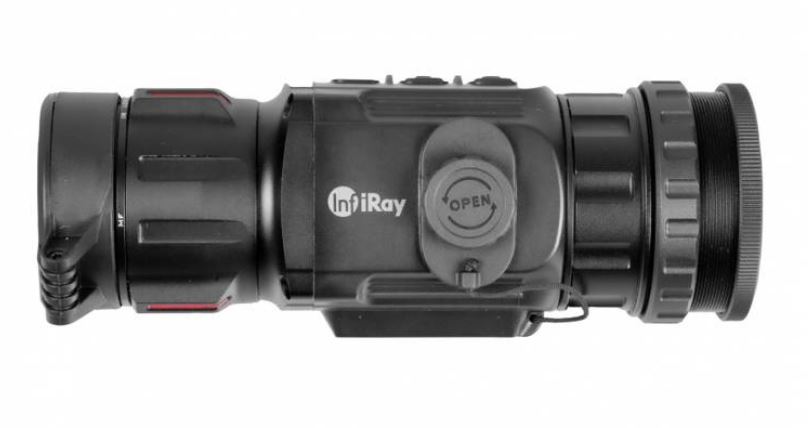

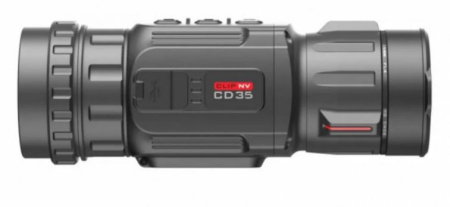

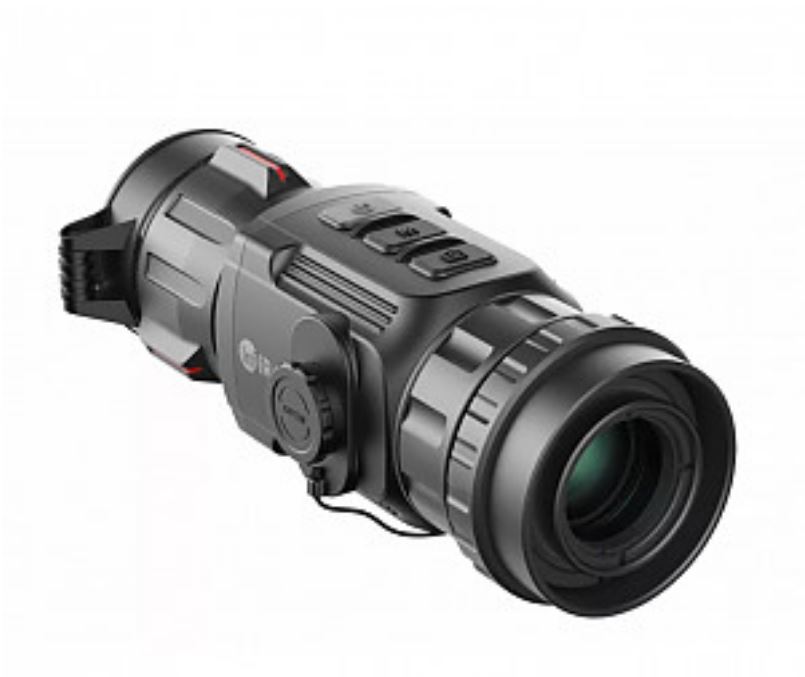

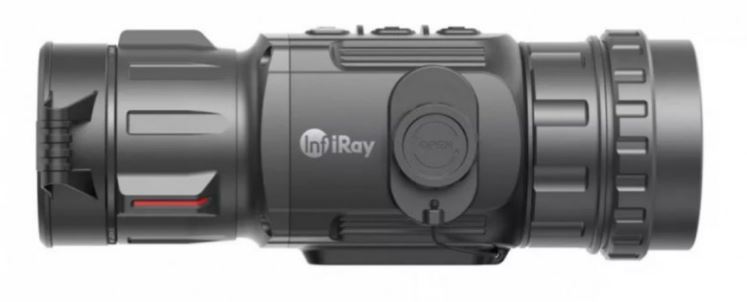

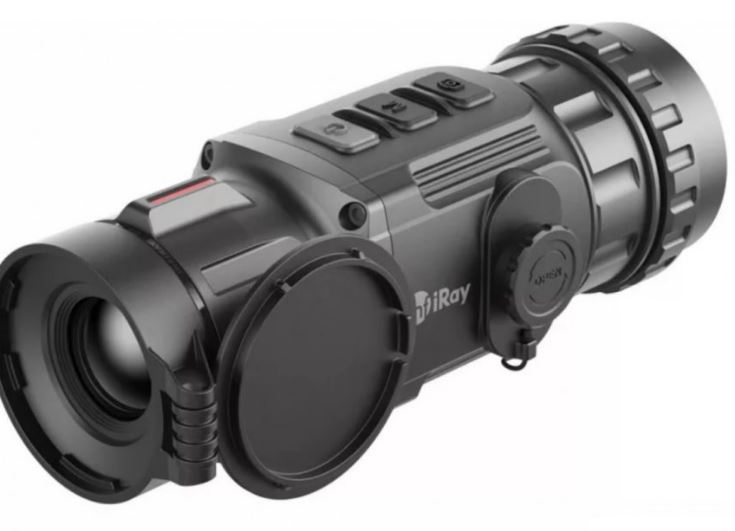

The CLIP NV series digital night vision clip on device InfiRay CD35 is a front attachment for day scope for outdoor hunting with a built in starlight image sensor with low light perf ormance. It can restore the real color and details of the observing imaging . It can be used with an IR illuminator for clear imaging at night. With the adapter ring, it can be quickly mounted and removed. It adopts two CR123 or two 16650 batteries for power supply, and users can purchase cusp batteries for replacement. It can be widely used for hunting, observation, and positioning in low visibility conditions.
The Saim NV series is a powerful and professional digital day and night riflescope (SCD 35) or clip on attachment (CD35) with outstanding night vision capability, featuring excellent full 1080P sensor with ultra-low light performance, compact size and lightweight, 16G build-in memory, Wi-Fi, Video record, Photo taking, and so on, it is perfect for day- and nighttime hunting and observation.
The secret of improved full 1080P sensor with excellent ultra-low light performance is a sensor pixel size of 4×4 μm and a full use of its resolution. It brings an enhanced sensitivity to the nighttime environments and preys regarding the comparison with other normal CMOS sensors on the market, much dimmer lights could be sensed and captures. Combined with high-workmanship NV lens it offers professional and expertise nighttime outdoor experience.
There are three image modes
Picture-in-Picture improves shooting accuracy by providing a 2x magnified image of the reticle area at the top of the display screen. It helps to magnify the target while retaining the rest of the field of view visible, with assistance of this functionthe user can closely focus on the image in the aiming area and have visual control of the entire field of view at the same time.
The CD35 and SCD35 offers optional 850nm or 940nm IR illuminator to allow for increased illumination while staying undetected to the target. With 850nm IR it is obviously that you can reach longer recognition range in nighttime; with 940nm there is no infrared exposure that can disturb the animals. Three features will be attached with the IR illuminators:
Day/Twilight/Night for demands in certain time of a day, benefiting from sensor performance and the exquisite combination of hardware and software, the users you can see color of the surrounding in twilight time.
A basic run life of 3.5h brings integrated CR123 batteries can met with the needs of hunters who usually choose the short distance journey, additionally, SCD35 is equipped with external battery cover, so the running time can increase to 7h with 2 replaceable 16650 batteries. It can satisfy most of demands those who need and enjoy hunt for long trip if they can loads enough replaceable batteries in their bags.
Specification :
Screen: 1024x768 OLED
Magnification Interval (x): 1-1
Lens: 35mm, F 1.4 (manual focus)
Horizontal field of view (°): 9.4
User Manual (HUN) : Click
Basic Magnification (x): 1
Material: composite, impact resistant
Eye relief : 35 mm
USB-C
Digital Zoom:-
Diopter compensation: - 7 / + 3 dpt
Other features: wireless control with Bluetooth, gun calibration, standby mode
Power supply: 2 x CR123 or 2 x 16650
Recording file formats: .jpg 1024x768, .mp4 1024x768 25 frames per second
Warranty: 3-year manufacturer's warranty
IR wavelength: 940 nm
IR distance: 200 m
Image repetition frequency: 50 Hz
Display color modes: colorful daylight and black and white night mode
Field of view: 9.4 x 7.1 °
Dimensions: 195 x 61 x 61 mm
Sensor: 1920x1080 HD
Color: black
Weight (g): 501
Operating time: 4-7 hours
Waterproof: IP66
The Saim NV series is a powerful and professional digital day and night riflescope (SCD 35) or clip on attachment (CD35) with outstanding night vision capability, featuring excellent full 1080P sensor with ultra-low light performance, compact size and lightweight, 16G build-in memory, Wi-Fi, Video record, Photo taking, and so on, it is perfect for day- and nighttime hunting and observation.
The secret of improved full 1080P sensor with excellent ultra-low light performance is a sensor pixel size of 4×4 μm and a full use of its resolution. It brings an enhanced sensitivity to the nighttime environments and preys regarding the comparison with other normal CMOS sensors on the market, much dimmer lights could be sensed and captures. Combined with high-workmanship NV lens it offers professional and expertise nighttime outdoor experience.
There are three image modes
Picture-in-Picture improves shooting accuracy by providing a 2x magnified image of the reticle area at the top of the display screen. It helps to magnify the target while retaining the rest of the field of view visible, with assistance of this functionthe user can closely focus on the image in the aiming area and have visual control of the entire field of view at the same time.
The CD35 and SCD35 offers optional 850nm or 940nm IR illuminator to allow for increased illumination while staying undetected to the target. With 850nm IR it is obviously that you can reach longer recognition range in nighttime; with 940nm there is no infrared exposure that can disturb the animals. Three features will be attached with the IR illuminators:
Day/Twilight/Night for demands in certain time of a day, benefiting from sensor performance and the exquisite combination of hardware and software, the users you can see color of the surrounding in twilight time.
A basic run life of 3.5h brings integrated CR123 batteries can met with the needs of hunters who usually choose the short distance journey, additionally, SCD35 is equipped with external battery cover, so the running time can increase to 7h with 2 replaceable 16650 batteries. It can satisfy most of demands those who need and enjoy hunt for long trip if they can loads enough replaceable batteries in their bags.
Specification :
Screen: 1024x768 OLED
Magnification Interval (x): 1-1
Lens: 35mm, F 1.4 (manual focus)
Horizontal field of view (°): 9.4
User Manual (HUN) : Click
Basic Magnification (x): 1
Material: composite, impact resistant
Eye relief : 35 mm
USB-C
Digital Zoom:-
Diopter compensation: - 7 / + 3 dpt
Other features: wireless control with Bluetooth, gun calibration, standby mode
Power supply: 2 x CR123 or 2 x 16650
Recording file formats: .jpg 1024x768, .mp4 1024x768 25 frames per second
Warranty: 3-year manufacturer's warranty
IR wavelength: 940 nm
IR distance: 200 m
Image repetition frequency: 50 Hz
Display color modes: colorful daylight and black and white night mode
Field of view: 9.4 x 7.1 °
Dimensions: 195 x 61 x 61 mm
Sensor: 1920x1080 HD
Color: black
Weight (g): 501
Operating time: 4-7 hours
Waterproof: IP66
